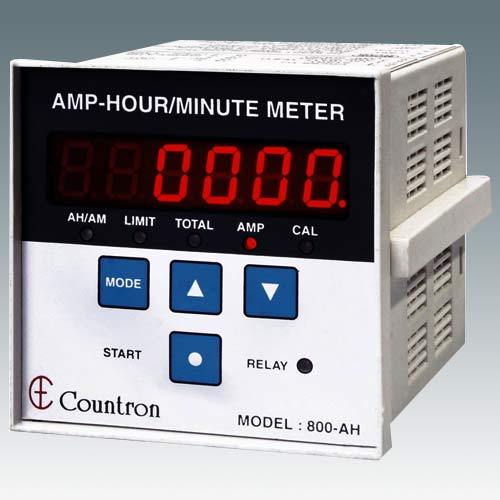

| Display | 6 RED 7 Segment LEDs of 0.56” character height. |
| Current Display | Max 9999 Amps using a shunt of current/75mV. User programmed |
| Amp-Hour | Max 999999 A-H for each preset cycle. (Amp-Hour range is selected by shorting Pin 17-18 at the rear) |
| Amp-Minute | Max 999999 A-Min for each preset cycle. (Amp-Minute is selected, opening the link between Pin 17 & 18). |
| Max shunt | Max value of 9999 Amp corresponding to 75mV |
| Totaliser | 6 Digits for Amp-Hour or Amp-Min. i.e. 99,99,99. (readable for 10 sec by going into ‘total’ mode). |
| Limit | Up to 999999 AH or Amin. setting (In limit mode using incr./ decr. switches). |
| Relay Contact | One NO-P-NC of 5 Amp rating. |
| Trigger start | By pressing front panel switch or closing a rear external contact. |
| Battery Back-Up | Not required. Programmed values & readings, including A-H stored in EPROM. |
| Lock | Electronic lock for calibration (open link between Pin 1 & 2 to lock CAL) |
| Low Volt. Trigger | Set at 10.5V internally. For testing 12V Battery AH. (With Pin 3 & 4 shorted). |
| Increased Res. | 0.1AH or 0.1AMin facility by shifting internal jumper. |
| Supply | 220V AC ? 10% |
| Size | Front Facia 96mm x 96mm Din Size. Depth 135mm. Cut Out : 91mm x 91mm. |
| Weight | 800 grams |
