NIRUMA TEXTILE MACHINERY

SAMPLE CUTTING MACHINE

₹ 100000.00  Incl. GST ₹ 84745.76 Excl. GST

Description

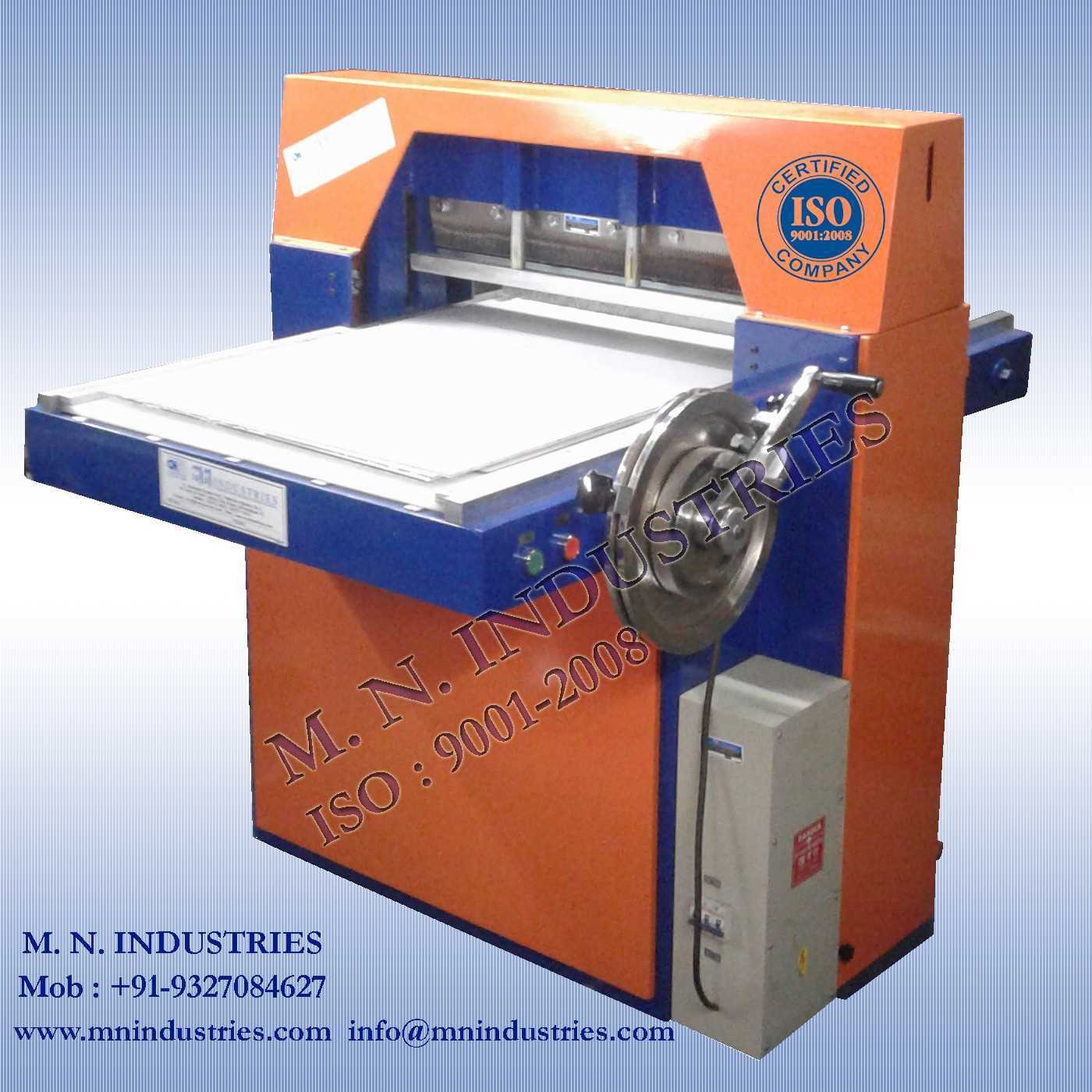

SAMPLE CUTTING MACHINE

Fabric Cutting Machine – Motor Driven Type, ( Auto Stop Type – Standard Design) Having Zigzag/Plain Type Cutting Blade of as per your requirement Length Complete with Three Phase Electric Motor & Control Panel.

Standard Features

• Easy operation • A sturdy structure fabricated from M.S. Sheet metal structure, so as to get vibration-free operation. • A hand wheel operated the device with stopper is provided to get to & fro motion of sliding table, with calibration which guarantees the equal, accurate & high production of samples. • Provided with adjustable screw arrangement with eccentric to get the blade position to the maximum upward / downward. • In order to get efficient cutting of heavy fabric like furnishing/filter cloth, totally enclosed type heavy duty. • Speed reduction gearbox unit provided along with electric motor machine will be completely covered and provided with safety guard covers. • A calibrated scale bar will be provided on the sliding table for the ease of operator to decide the size of the sample to be cut. • The machine can cut fabric layer up to 50 mm at the single stroke. • The machine will be provided with photoelectronic sensors on feeding side, in order to avoid accident to the operator, while cutting the fabric. • Cutting board is provided with the machine, in order to protect the blade from damage during the cutting operation.
• A laser line marking system provided to locate zero mark reference on fabric. • A hand wheel is provided to move the sliding table to get the desired size of samples to be cut. • To cut the fabric sample, press the green push button switch, the machine will stop automatically after cutting the fabric • Models are available in blade size of 13”, 18”, 24”, 32”, 36”, 48” 60”.

Specifications:

• Fabric cutting speed: Fabric cutting speed: 10 strokes / min.
• Capacity of cutting maximum fabric layers thickness : 50 mm
• Adjustment of blade carrying bracket to upward and downward direction: 45 mm
• Auto operation: once press the green push button, the machine will cut the fabric sample & stop automatically.
• Drive required: A. C. Electric motor 440 volts, 3 phase, 1440 rpm, with suitable control panel and switch.

SELLER: NIRUMA TEXTILE MACHINERY

SAMPLE CUTTING MACHINE

Product code (MPN): ITB-E4506632
Availability:In Stock
₹ 100000.00  Incl. GST ₹ 84745.76 Excl. GST
  • Description
    SAMPLE CUTTING MACHINE

    Fabric Cutting Machine – Motor Driven Type, ( Auto Stop Type – Standard Design) Having Zigzag/Plain Type Cutting Blade of as per your requirement Length Complete with Three Phase Electric Motor & Control Panel.

    Standard Features

    • Easy operation • A sturdy structure fabricated from M.S. Sheet metal structure, so as to get vibration-free operation. • A hand wheel operated the device with stopper is provided to get to & fro motion of sliding table, with calibration which guarantees the equal, accurate & high production of samples. • Provided with adjustable screw arrangement with eccentric to get the blade position to the maximum upward / downward. • In order to get efficient cutting of heavy fabric like furnishing/filter cloth, totally enclosed type heavy duty. • Speed reduction gearbox unit provided along with electric motor machine will be completely covered and provided with safety guard covers. • A calibrated scale bar will be provided on the sliding table for the ease of operator to decide the size of the sample to be cut. • The machine can cut fabric layer up to 50 mm at the single stroke. • The machine will be provided with photoelectronic sensors on feeding side, in order to avoid accident to the operator, while cutting the fabric. • Cutting board is provided with the machine, in order to protect the blade from damage during the cutting operation.
    • A laser line marking system provided to locate zero mark reference on fabric. • A hand wheel is provided to move the sliding table to get the desired size of samples to be cut. • To cut the fabric sample, press the green push button switch, the machine will stop automatically after cutting the fabric • Models are available in blade size of 13”, 18”, 24”, 32”, 36”, 48” 60”.

    Specifications:

    • Fabric cutting speed: Fabric cutting speed: 10 strokes / min.
    • Capacity of cutting maximum fabric layers thickness : 50 mm
    • Adjustment of blade carrying bracket to upward and downward direction: 45 mm
    • Auto operation: once press the green push button, the machine will cut the fabric sample & stop automatically.
    • Drive required: A. C. Electric motor 440 volts, 3 phase, 1440 rpm, with suitable control panel and switch.
