Dishant Electronics

Servo Voltage Stabilizer Three Phase Oil Cooled

₹ 225000.00  Incl. GST/Nos ₹ 190677.97 Excl. GST

Description

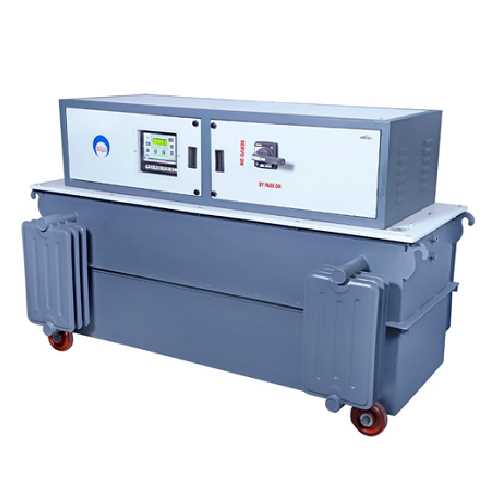

Servo Voltage Stabilizer Three Phase Oil Cooled
Servo Voltage Stabilizer Three Phase Oil Cooled
Servo voltage stabilizer is a type of stabilization system that is controlled by servo motor to supply optimum voltage. Buck boost transformer is used to capture fluctuations in input and correcting output by regulating current. The servo voltage stabilizer use power of auto transformer and buck boost transformer, these are connected between load and incoming supply. The auto transformer is connected with the boost transformer’s primary winding in such a way that one tap point of variable auto transformer is connected with the lead of the winding, the applied voltage on the primary winding can increase or decrease the supply voltage on the secondary side. Depending as per supply input voltage, AC synchronous motor will rotate in clockwise or anticlockwise direction to drive autotransformer to achieve high or low output voltage. For achieving desired output voltage, an electronic control card is used for continuously monitoring and comparing the output data with set reference output voltage. The electronic control card captures and responds in the variation of input voltage.

Contact Address:
G-6, Shayona Estate, Near Memco Cross Road Naroda Road, Near Memco Cross Road, Naroda Road, Ahmedabad-380025, Gujarat, India

Features:

• Input Voltage: 300v- 490v
• Output Voltage: 415 +1 %
• Operating Freequency: 47 to 52 HZ
• Response Time: 10m Sec
• Efficiency: 95%
• Wave From Distoration: Nil(Same As Input)
• Effect On Powar Fector: (Same As Input)
• Operating Temp: 52C(Max)
• Cooling: Natural

Protection:
• Under Over Voltage
• Over Load Protection
• Single phasing Preventer
• Neutral lift protection
• By pass switch
• Revarse Phase
• All Protection By Micro prossersar Base Control By Contactors

Indicators:
• Mains On Inication In Lcd Display
• Phase to Phase Volts
• Phase To neut ion Volts
• Per phase Current Amp
• Product Technical Specification Change The Perameter
• Micro Prosser Base Control System
• Digital Microprocessor Base
• Powder coting cabinet 14 &20 swg angel structure

Servo Voltage Stabilizer Three Phase Oil Cooled

Product ID (MPN): ITB-36CD13C8
Availability:In Stock
₹ 225000.00  Incl. GST ₹ /Nos
Brand Name Dishant Electronics
Model ITB-36CD13C8
Condition New
Unit Type Nos
Minimum Order Quantity 1
Minimum Ordered Packs 1
Country of Origin India
Taxes Inclusive of Tax
Ships from Ahmedabad
Shipping Product eligible for free shipping
Returnable 7 Days Return
Warranty Type Manufacturer / Seller
Warranty Not Applicable
