Description

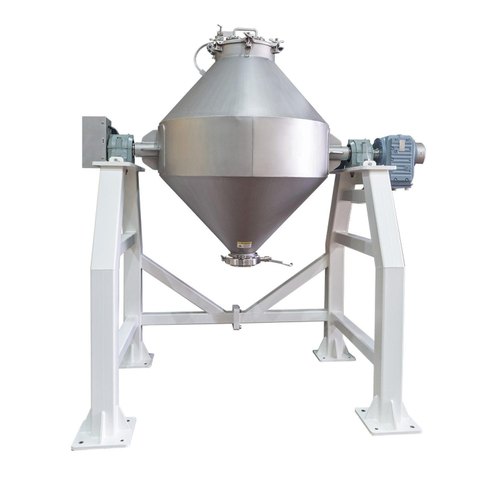

The Double Cone Blender is an efficient and versatile machine for mixing dry powder and granules homogeneously.
All the contact parts are made of stainless steel. The effective volume for optimum homogeneity is between 35-70% of gross volume. The SLANT double cone design eliminates dead sports, which occasionally occur in conventional double cone mixer. It can be used for pharmaceutical, food, chemical and cosmetic products etc. Application

• Dry powder mixing for tablets and capsule formulations
• Dry granules sub lots mixing to increase the batch size at bulk lubrication stage of tablet granules.

Salient Features

• The conical shape at both ends enable uniform mixing and easy discharge
• The cone is statically balanced to avoid any excessive load on the gear box and motor
• While the powder can be loaded into the cone through a wider opening, it can be discharged through a butterfly or slide valve
• Depending upon the product, paddle-type baffles can be provided on the shaft for better mixing inside the cone.
• The contact parts are made of either SS 304 or SS 316
• Fame proof motor can be supplied as optional
• Capacity available 20lts.3000 Liters
• The working capacity can be exchanged to 80% of gross capacity by validated study depending on the product.
