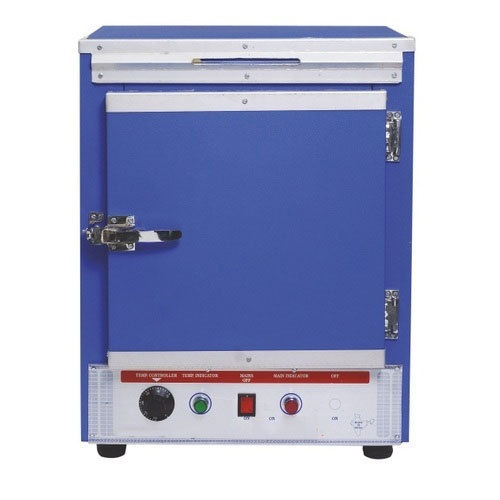

We are a leading Manufacturer of Lab Oven from Ahmedabad, India.
Applications
- Drying, Backing, Ageing, Softening, Sterilization, Molding, Moisture determination, Heating
- IQ/OQ/PQ/DQ Qualification Documents
- Test Report & Detailed Instruction Manual
- PC/Printer Interface FacIlity
Available Models
- NIC-001D,NIC-001DG, NIC-001T, NIC-001TG
Application
Hot Air Oven are aesthetically designed and precisely fabricated to use in various fields Of Medical, Agriculture Industrial Research and Educational Industries for day to day Heating, drying, sterilization etc.
Construction
- Interior : Stainless steel 304/316(GMP model) with mirror polish.
- Exterior : Heavy gauge M.S. with powder coated or S.S.304 in GMP model.
- Ventilation : Ventilation provided on top or two side for removing hot gases and Fumes.
Heating
- Heaters : High grade “U” Type pipe heater with finch place in bottom for Uniform temperature.
Power
- Single Phase 230Valts A.C. Supply
Optional Accessories
- Fan : Air circulating Fan or Blower with motor for uniform temperature.
- Timer : To switch ON/OFF the oven as per the requirement.
- Buzzer : Audio Indication in case of set value deviation.
- Temp. Control : Digital Temperature controller for easy readability and precise control Of the temperature
- Documentation : IQ/OQ/PQ/DQ Documentation for GMP Model
| Sr.No. | Working Chamber Size(cms)(DXWXH) | Chamber Cap.(Ltr.) | Standard Model No. | GMP Model No. | Rating(Kw) | Shelves |
|---|
| 1 |
12”X12”X12” |
27 |
NIC-SD001SD27 |
NIC-001GD27 |
1 |
1 |
| 2 |
14”X14”X14” |
43 |
NIC-SD001SD43 |
NIC-001GD43 |
1 |
1 |
| 3 |
18”X18”X18” |
94 |
NIC-SD001SD94 |
NIC-001GD94 |
1.5 |
2 |
| 4 |
18”X18”X24” |
127 |
NIC-001SD127 |
NIC-001GD217 |
1.5 |
2 |
| 5 |
24”X24”X24” |
226 |
NIC-001SD226 |
NIC-001GD226 |
2.0 |
3 |
| 6 |
24”X24”X36” |
339 |
NIC-001SD339 |
NIC-001GD339 |
2.5 |
3 |
