Dunamis Machines International Private Limited

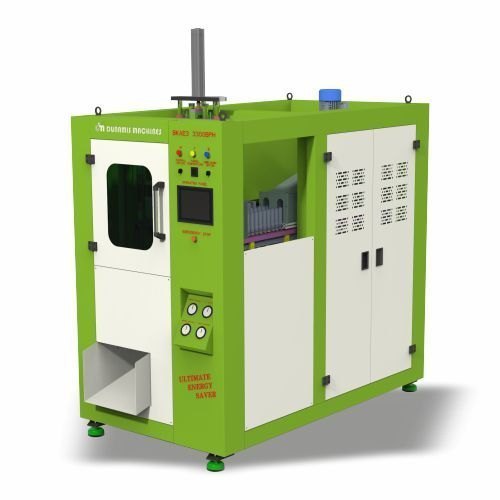

Automatic Pet Blowing Machine

₹ 1175000.00  Incl. GST ₹ 995762.71 Excl. GST

Description

Our machine has simple innovative design and ultimate energy saving. It is engineered for efficiency and maximum production speed.
  • Advanced Infrared Preheating System for Up to 30% Power Saving.
  • Blowing Toggle System for Easy and Lesser Mould Changing Time (Max.10min).
  • Air Recovery System is to recover & reuse the blowing air.
  • Long Life PU Seal Cylinders and Higher Accuracy Valves used for Low Pressure Control System.
  • Advanced PLC Based System with 10 Multi colour HMI Unit used for Easy Man Machine Interfacing and Higher Machine Performance.
  • Multiple Products Like Mineral Water Bottles, Carbonated Soft Drinks Bottles, Hot Fill Juice Bottles at Low Investment.
  • Machine Can Store 50 Mould Recipe Parameters so it helps to reduce Mould Changing Time.
  • High Productivity with Low Power Consumption.
  • Easy operation & Easy maintenance.
  • Compact Structure and low maintenance cost.

Overall, this machine is designed for safe, hygienic, high quality PET bottles with Cost effective production. Product details:
No of mould cavity 3 Caviry
Production Capacity (Bottles Per Hour) 3300BPH for 300ml
Brand Dunamis
Model Number DM-BKAE3
Country of Origin Made in India
Maximum Container Volume (Capacity of Bottle) 1000ml
Neck Diameter 28mm
Max. Diameter of Bottle 82mm
Max. Height of the Bottle 270mm
Bottle Outlet Auto Drop
Size of the Mould (Width x Length) 120mm x 310mm
Air Consumption 55CFM
Air Blowing Pressure 20Bar
Working Pressure 6Bar
Required Water Chiller Capacity 3.5Ton@10 Degree C
Required Air Dryer Capacity 100CFM/25Bar
SELLER: Dunamis Machines International Private Limited

Automatic Pet Blowing Machine

Product code (MPN): ITB-11AB5706
Availability:In Stock
₹ 1175000.00  Incl. GST ₹ 995762.71 Excl. GST
  • Description
    Our machine has simple innovative design and ultimate energy saving. It is engineered for efficiency and maximum production speed.
    • Advanced Infrared Preheating System for Up to 30% Power Saving.
    • Blowing Toggle System for Easy and Lesser Mould Changing Time (Max.10min).
    • Air Recovery System is to recover & reuse the blowing air.
    • Long Life PU Seal Cylinders and Higher Accuracy Valves used for Low Pressure Control System.
    • Advanced PLC Based System with 10 Multi colour HMI Unit used for Easy Man Machine Interfacing and Higher Machine Performance.
    • Multiple Products Like Mineral Water Bottles, Carbonated Soft Drinks Bottles, Hot Fill Juice Bottles at Low Investment.
    • Machine Can Store 50 Mould Recipe Parameters so it helps to reduce Mould Changing Time.
    • High Productivity with Low Power Consumption.
    • Easy operation & Easy maintenance.
    • Compact Structure and low maintenance cost.

    Overall, this machine is designed for safe, hygienic, high quality PET bottles with Cost effective production. Product details:
    No of mould cavity 3 Caviry
    Production Capacity (Bottles Per Hour) 3300BPH for 300ml
    Brand Dunamis
    Model Number DM-BKAE3
    Country of Origin Made in India
    Maximum Container Volume (Capacity of Bottle) 1000ml
    Neck Diameter 28mm
    Max. Diameter of Bottle 82mm
    Max. Height of the Bottle 270mm
    Bottle Outlet Auto Drop
    Size of the Mould (Width x Length) 120mm x 310mm
    Air Consumption 55CFM
    Air Blowing Pressure 20Bar
    Working Pressure 6Bar
    Required Water Chiller Capacity 3.5Ton@10 Degree C
    Required Air Dryer Capacity 100CFM/25Bar
