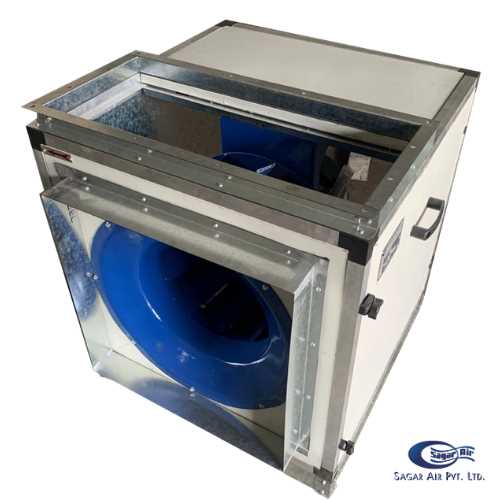

Sagar Air Multi Box Fans are offered in various capacities and sizes. These fans are symmetric and durable, silent in operation and can cater to high statics when necessary. A Complete Modular System: The panels are removable any outlet side can be chosen on-site, allowing for a very flexible ventilation solution. A Multi-Purpose Solution: A wide variety of applications can benefit from its quiet efficient operation, such as schools, warehouses offices, commercial and industrial buildings. Highly Efficient: Energy efficient EC-motors and optimized blade and inlet cone geometry result in low SFP-value*. All SAGARI AIR MUB Fans are pride for Eco-friendly Ventilation. Silent Enough: The double skin panels are manufactured from galvanized steel with 7/9 inches (20/24 mm) PUF insulation for excellent sound reduction and thermal properties. You can see and, actually, hear the result
Product Details |
| Usage/Application | Industrial |
| Power Source | Electricity |
| Fan Speed | Fixed |
| Model Name/Number | SAMBZ Series |
| Voltage | 220 V |
| Country of Origin | Made in India |
| Air Discharges | Can cater up to 8000 CFM |
| Static Pressures | High Statics up to 60 mm WC |
Other Details: Sagar Air Multi Box Fans are offered in various capacities and sizes. These fans are symmetric and durable, silent in operation and can cater to high statics when necessary. A Complete Modular System: The panels are removable any outlet side can be chosen on-site, allowing for a very flexible ventilation solution. A Multi-Purpose Solution: A wide variety of applications can benefit from its quiet efficient operation, such as schools, warehouses offices, commercial and industrial buildings. Highly Efficient: Energy efficient EC-motors and optimized blade and inlet cone geometry result in low SFP-value*. All SAGARI AIR MUB Fans are pride for Eco-friendly Ventilation. Silent Enough: The double skin panels are manufactured from galvanized steel with 7/9 inches (20/24 mm) PUF insulation for excellent sound reduction and thermal properties. You can see and, actually, hear the result Salient Features for Multi-Box Fans :- Construction:
- Single Skin / Double Skin
- PUF or FibreGlass insulated 24mm thick paneling
- High-Quality FRP inlet cone.
- Impeller:
- Backward Curved, Fully dynamically balanced impeller
- Direct Drive motor set
- Options Accessories:
- Volume Control Dampers with Actuators
- Variable Frequency Drive for Fan Speed control
- Inspection Door
- Application Suitability:
- Pharmaceutical Industries
- Food Industries
- Textile
- Cement industries
- Chemical Industries
- Defense Industries
- Cotton industries
- Hotels and Restaurants
