Spectra Labtech

Pull Off Adhesion Tester Manual

₹ 58000.00  Incl. GST ₹ 49152.54 Excl. GST

Description

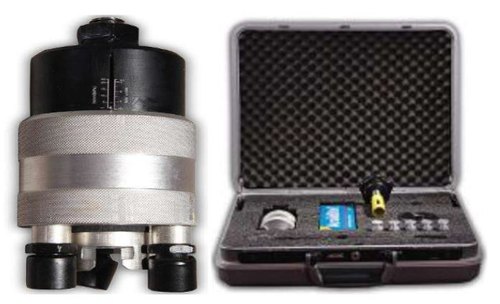

Pull off Adhesion Tester is an easy to operate and fully portable, provides a test results values for adhesion. Applications include: paint or plasma spray on bridge decking, coatings on steel, aluminium or concrete, etc supplied with carrying case for site jobs.

Totally hand operated mechanical instrument. Hand Cutter for EN13144 and ISO 4624 tests.
Adhesion Tester is very simple and uses a test dolly. Dolly is bonded to the coating using an adhesive.
The tester consists of a spring arrangement which applies a lift force to the dolly.
When the dolly is pulled off the surface, an indicator on the scale shows the numerical value of adhesion expressed in
terms of the force required to remove the dolly.

Complies with International Standards : AS 1580.408.5, ASTM D 4541, EN 13144, ISO 4624, ISO 16276-1, JIS K
5600-5-7, NF T30-062, NF T30-606.

Manual Adhesion Tester Specifications:
Part No. Head Type Operating Range (PSI) Operating Range (MPa) Accuracy
1064 Standard (Manual) 0 – 3200 0 – 22 ± 2 % FSD
Model Description
1064 Adhesion Tester
1064 A Araldite Epoxy Adhesive
1064 B Base Plate Large Ring
1064 C Cutter for Dolly 20mm
1064 D 20 mm Spare Dollies (pkt. 10 Nos.)


Accuracy
+/- 2% PSD
Head type
standard Manual
Operating Range Mps
0-22
Standards
Complies with AS 1580.408.5, ASTM D 4541, EN 13144, ISO 4624, ISO 16276-1, JIS K 5600-5-7, NF T30-06
Operating Range
0-3200 PSI
Brand
SL

SELLER: Spectra Labtech

Pull Off Adhesion Tester Manual

Product code (MPN): ITB-A6A22249
Availability:In Stock
₹ 58000.00  Incl. GST ₹ 49152.54 Excl. GST
  • Description
    Pull off Adhesion Tester is an easy to operate and fully portable, provides a test results values for adhesion. Applications include: paint or plasma spray on bridge decking, coatings on steel, aluminium or concrete, etc supplied with carrying case for site jobs.

    Totally hand operated mechanical instrument. Hand Cutter for EN13144 and ISO 4624 tests.
    Adhesion Tester is very simple and uses a test dolly. Dolly is bonded to the coating using an adhesive.
    The tester consists of a spring arrangement which applies a lift force to the dolly.
    When the dolly is pulled off the surface, an indicator on the scale shows the numerical value of adhesion expressed in
    terms of the force required to remove the dolly.

    Complies with International Standards : AS 1580.408.5, ASTM D 4541, EN 13144, ISO 4624, ISO 16276-1, JIS K
    5600-5-7, NF T30-062, NF T30-606.

    Manual Adhesion Tester Specifications:
    Part No. Head Type Operating Range (PSI) Operating Range (MPa) Accuracy
    1064 Standard (Manual) 0 – 3200 0 – 22 ± 2 % FSD
    Model Description
    1064 Adhesion Tester
    1064 A Araldite Epoxy Adhesive
    1064 B Base Plate Large Ring
    1064 C Cutter for Dolly 20mm
    1064 D 20 mm Spare Dollies (pkt. 10 Nos.)


    Accuracy
    +/- 2% PSD
    Head type
    standard Manual
    Operating Range Mps
    0-22
    Standards
    Complies with AS 1580.408.5, ASTM D 4541, EN 13144, ISO 4624, ISO 16276-1, JIS K 5600-5-7, NF T30-06
    Operating Range
    0-3200 PSI
    Brand
    SL
