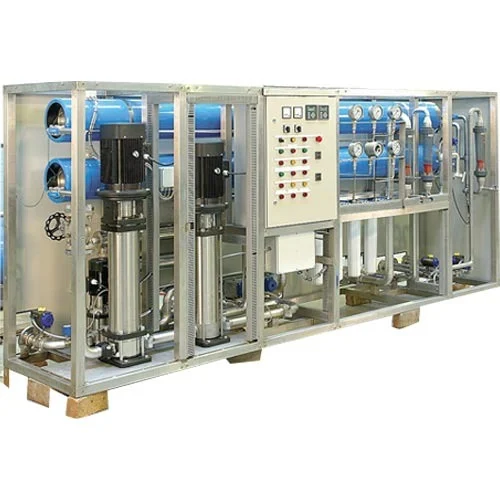

25 LPH TO 1000 LPH
Minimum Order Quantity: 1
1 Pack contains : 1 Unit
| Ø DESIGN BASIS: | |
| The chemical composition of Raw Water is considered as follows: | |
| TDS | 2000 ppm |
| PH | 7.5 |
| Note: It is understood that there is no heavy metal or difficult elements, which is necessary to remove prior to feeding into R.O. System. | |
| Ø PRODUCT WATER QUALITY: | |
| TDS | <100 ppm |
| PH | 7.6 |
| SCOPE OF SUPPLY FOR R.O. PLANT & FACILITIES: | |
| Product | Technical Specification |
| Flow Rate | 100 Litres per Hour |
| Raw Water Feed Flow | 500 Litres per Hour |
| Recovery | 40-50 % |
| RAW WATER PUMP | |
| Flow Rate | 1500 LPH |
| Head | 35 m |
| Power | (0.5 HP) |
| Quantity | 1 No |
| Make | Kirloskar /Crompton Greaves |
| MULTI GRADE FILTER UNIT: | |
| Make and size | Wave Cyber ( 13/54) |
| MOC | FRP |
| Quantity | 1 No. |
| Make | Pentair |
| Purpose: To remove total suspended solids dirt, iron, Manganese and reduce Silt density index so as to prevent fouling of Membrane. | |
| ACTIVATED CARBON FILTER: | |
| Make and size | Wave Cyber ( 13/54) |
| MOC | FRP |
| Quantity | 1 No. |
| Make | Pentair |
| Purpose:- To remove chlorine, color, smell etc. | |
| Equipped with 1” Multi port Valve, Media and respective Pipeline. | |
| MICRON FILTER: | |
| Housing: | |
| Make | Amete/ Gentec |
| MOC of Housing | PP |
| Length X Diameter | 20” X 4” |
| Quantity | 2 No. |
| Cartridge: | |
| Make | Filterite /Pratham/ Ametek |
| Cartridge MOC | Polypropylene |
| Length | 20” |
| Diameter | 4” |
| Quantity | 2No. |
| Micron Rating | 5 Micron |
| Purpose: After antiscalant system water passes through micron filter having filter cartridge of 5 micron porosity so as to produce clear water suitable for Membrane feed. | |
| HIGH PRESSURE PUMP | |
| MOC | Stainless Steel |
| Type | Vertical Centrifugal Multistage |
| Flow Rate | 2000 liters per hour 15kg |
| Head | 125 m |
| Power Supply | 1 KW, 220 V |
| Make | Lubi/CRI/CNP |
| Quantity | 1 No |
| Purpose: To feed RO Membrane at pressure more than the osmotic pressure, considering flux rate, flow and recovery. | |
| RO MEMBRANES | |
| Type of Membrane | HR(Poly Amide) |
| Diameter of Membrane | 4.0 inch |
| Length of Membranes | 40 inch |
| No. of Membranes | 1 |
| Make of Membranes | Hydraunatics /BURTAN |
| System Recovery | 40-50 % |
| Purpose: To remove most of the dissolved solids present in water and to reduce TDS (Total Dissolved Solids). | |
| RO HOUSING | |
| MOC | FRP |
| Diameter of Pressure Vessel | 4 inch |
| Length of Pressure Vessel | 82 inch |
| No. Pressure Vessels | 1 |
| No. of Membrane per Vessel | 1 |
| Make | Advance/Wave Cyber |
| Position | Horizontal |
| Purpose: To pack membrane and operate at high pressure. | |
| ACTIVATED CARBON FILTER: | |
| Make and size | Wave Cyber ( 13/54) |
| MOC | FRP |
| Quantity | 1 No. |
| Make | Pentair |
| Purpose:- To remove chlorine, color, smell etc. | |
| Equipped with 1” Multi port Valve, Media and respective Pipeline. | |
| MICRON FILTER: | |
| Housing: | |
| Make | Amete/ Gentec |
| MOC of Housing | PP |
| Length X Diameter | 20” X 4” |
| Quantity | 2 No. |
| Cartridge: | |
| Make | Filterite /Pratham/ Ametek |
| Cartridge MOC | Polypropylene |
| Length | 20” |
| Diameter | 4” |
| Quantity | 2No. |
| Micron Rating | 5 Micron |
| Purpose: After antiscalant system water passes through micron filter having filter cartridge of 5 micron porosity so as to produce clear water suitable for Membrane feed. | |
| HIGH PRESSURE PUMP | |
| MOC | Stainless Steel |
| Type | Vertical Centrifugal Multistage |
| Flow Rate | 2000 liters per hour 15kg |
| Head | 125 m |
| Power Supply | 1 KW, 220 V |
| Make | Lubi/CRI/CNP |
| Quantity | 1 No |
| Purpose: To feed RO Membrane at pressure more than the osmotic pressure, considering flux rate, flow and recovery. | |
| RO MEMBRANES | |
| Type of Membrane | HR(Poly Amide) |
| Diameter of Membrane | 4.0 inch |
| Length of Membranes | 40 inch |
| No. of Membranes | 1 |
| Make of Membranes | Hydraunatics /BURTAN |
| System Recovery | 40-50 % |
| Purpose: To remove most of the dissolved solids present in water and to reduce TDS (Total Dissolved Solids). | |
| RO HOUSING | |
| MOC | FRP |
| Diameter of Pressure Vessel | 4 inch |
| Length of Pressure Vessel | 82 inch |
| No. Pressure Vessels | 1 |
| No. of Membrane per Vessel | 1 |
| Make | Advance/Wave Cyber |
| Position | Horizontal |
| Purpose: To pack membrane and operate at high pressure. | |
