Bending Machines

Bending machines are industrial tools used to form sheet metal, plates, tubes, or other long materials into specific angles or curves. They are fundamental in fabrication for creating components with precise geometric shapes without cutting or welding multiple pieces. This is a general term encompassing various types of bending equipment.

Types of Bending machines

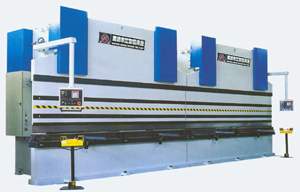

Press Brakes (already covered in detail):

For bending sheet metal using punches and dies (hydraulic, mechanical, servo-electric).

Roll Bending Machines (Plate Rolls):

For bending plates into cylinders, cones, or curved sections using three or four rolls.

Tube Bending Machines (Tube Benders):

For bending pipes and tubes.

Rotary Draw Benders: For precise, tight-radius bends.

Mandrel Benders: Use a mandrel inside the tube to prevent collapse during bending, for critical applications.

Roll Benders (for tubes): For large radius, continuous bends.

Compression Benders: Simpler, for less critical applications.

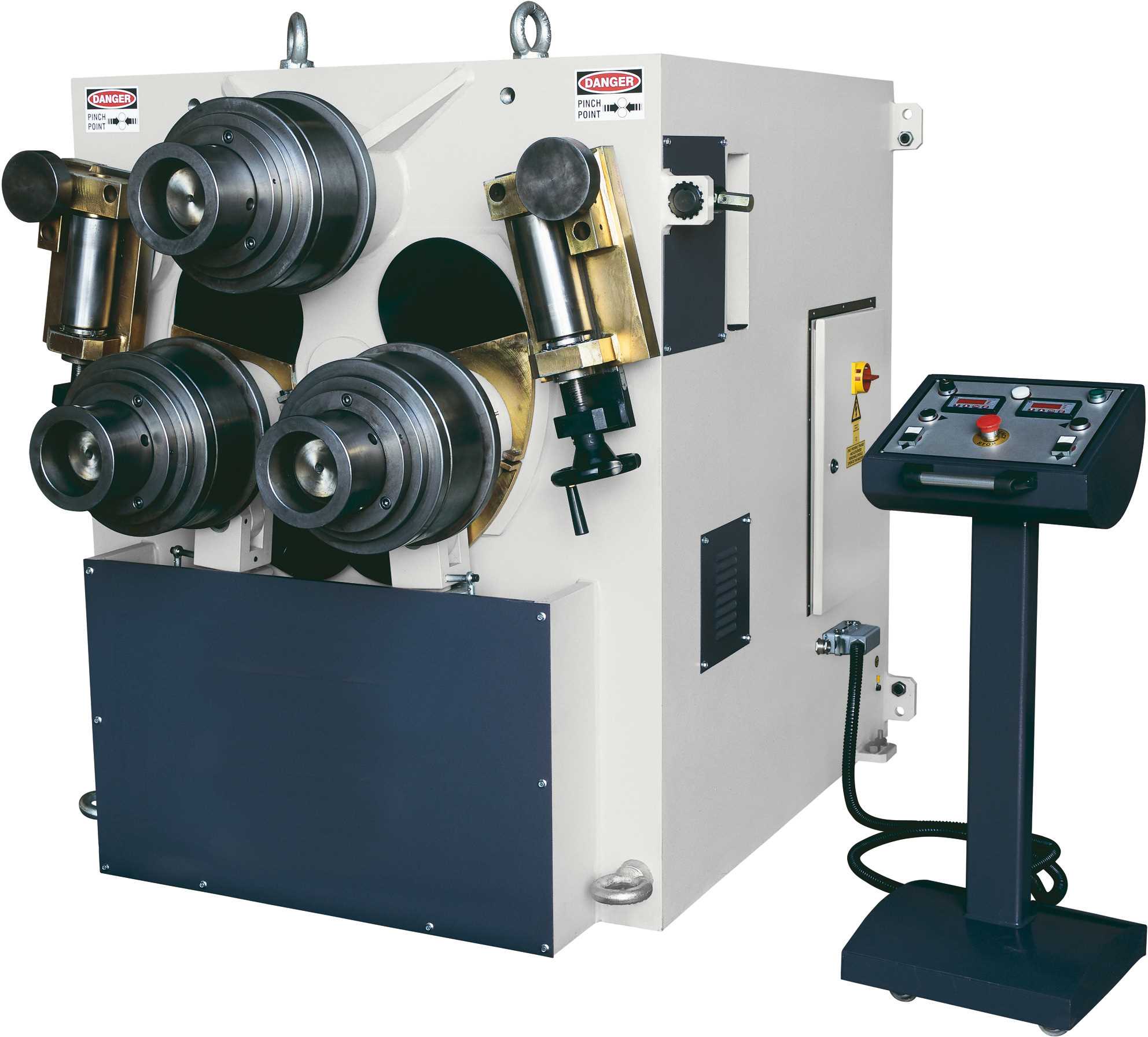

Profile Bending Machines (Section Benders):

For bending structural profiles like angles, channels, I-beams, or solid bars.

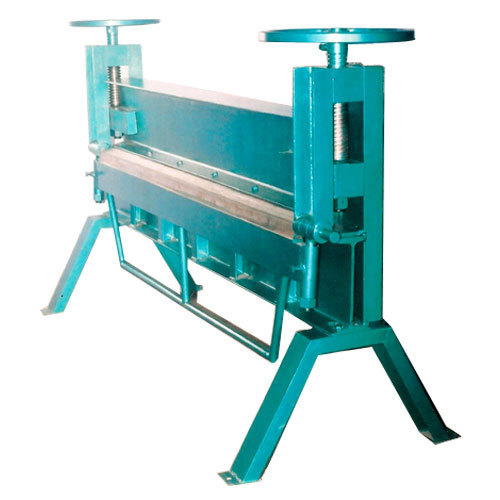

Folding Machines (Metal Folders):

For creating sharp, straight bends in sheet metal, often used for ductwork or flashing. (Distinct from paper folding machines).

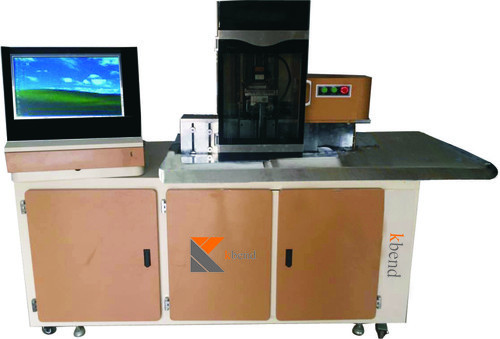

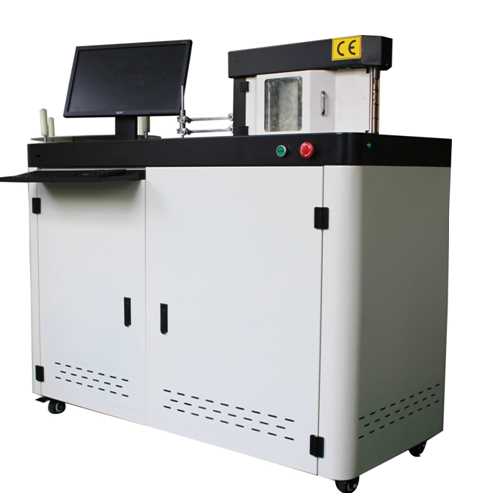

Wire Bending Machines:

For forming wires into specific shapes, often automated CNC.

Applications in Various Industries

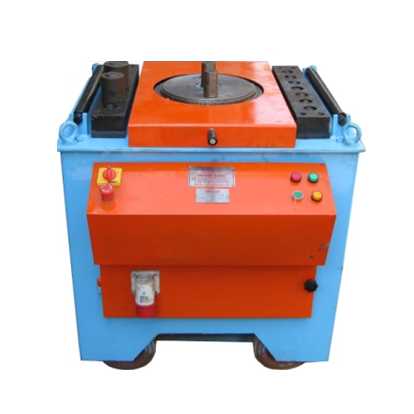

Construction: Structural steel, rebar bending, HVAC ducting, roofing components.

Automotive: Exhaust systems, chassis components, roll cages.

Aerospace: Aircraft frames, engine components, hydraulic lines.

Shipbuilding: Hull plates, piping.

Manufacturing: Machine frames, enclosures, furniture, appliance parts.

Energy: Pipelines, pressure vessels, boiler components.

Furniture: Metal chairs, tables.

Art & Sculpture: Custom metal creations.

Material Selection Considerations

For Machine Components:

• Frame/Structure: Heavy-duty welded steel (e.g., structural steel, high-strength low-alloy steel) for immense rigidity and stability to withstand bending forces.
• Rolls/Dies/Punches: High-carbon tool steel, alloy steel, or hardened steel, often heat-treated and ground for extreme wear resistance, strength, and precision. Sometimes coated for durability or reduced friction.
• Hydraulic Cylinders/Pumps: Steel, cast iron, specialized alloys.
• Gears & Bearings: Hardened steel for durability and precision.
• Guides/Wear Plates: Bronze, hardened steel, or specialized polymers (e.g., Nylatron) for low friction and wear.

For Workpiece Materials (Being Bent):

• Steels: Carbon steel, stainless steel, galvanized steel, mild steel, high-strength low-alloy (HSLA) steel. Selection depends on required strength, corrosion resistance, and ductility.
• Aluminum Alloys: Various temper and alloy combinations (e.g., 3003, 5052, 6061) chosen for their formability and strength.
• Copper & Brass: Good ductility for bending.
• Titanium Alloys: High strength-to-weight, but challenging to bend due to high springback and lower ductility.
• Nickel Alloys: For high-temperature or corrosive applications.
