Hardness Tester

A hardness tester is a device used to measure the resistance of a material to permanent indentation or scratching. Hardness is a crucial mechanical property that indicates a material's resistance to wear, abrasion, and deformation, influencing its suitability for various applications.

Types of Hardness Tester

Rockwell Hardness Tester: Measures depth of indentation; widely used for metals.

Brinell Hardness Tester: Measures diameter of indentation from a hardened steel or carbide ball; suitable for softer metals and castings.

Vickers Hardness Tester: Measures size of indentation from a diamond pyramid indenter; suitable for a wide range of materials, including very hard ones, and for small areas.

Knoop Hardness Tester: Similar to Vickers but uses an elongated diamond pyramid, ideal for very brittle materials or thin layers.

Shore Durometer: Measures the indentation hardness of rubbers, plastics, and other non-metallic materials.

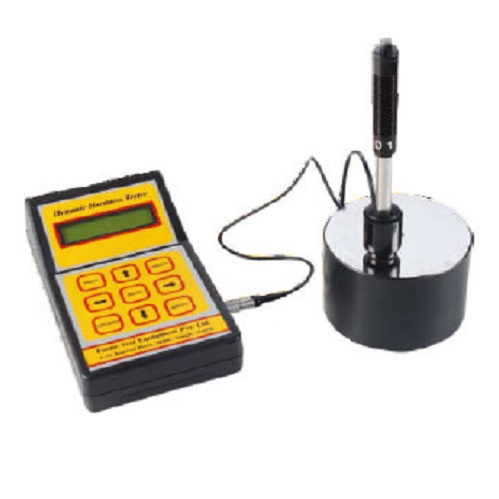

Leeb Hardness Tester: Portable rebound hardness tester for metals.

Barcol Hardness Tester: For composite materials and softer metals.

Applications in Various Industries:

Metallurgy: Quality control of heat-treated parts, material identification, and assessing wear resistance of metals.

Automotive: Testing gears, shafts, engine components, and body panels.

Manufacturing: In-process quality control for various parts, ensuring consistency in material properties.

Plastics & Rubber: Characterizing the hardness of polymers for consumer goods, seals, and tires.

Aerospace: Quality control for critical components.

Technology:

Precision loading mechanisms (dead-weight, closed-loop load cells), optical systems (for Brinell/Vickers/Knoop) with automated image analysis, digital displays, data storage, automated turret for indenter/objective changes, and sometimes automated X-Y stages for multiple test points. Calibration blocks are essential for verification.

Material Selection Considerations:

• Indenters: Crucially, diamond (Vickers, Knoop, some Rockwell), hardened steel ball (Brinell, some Rockwell), or carbide ball (Brinell) for superior hardness and wear resistance.
• Test Anvil/Stage: Hardened steel or cast iron for rigidity and stability.
• Frame: Robust cast iron or steel for stability and vibration damping.
• Loading Mechanism: Precision-machined components for accurate force application.
