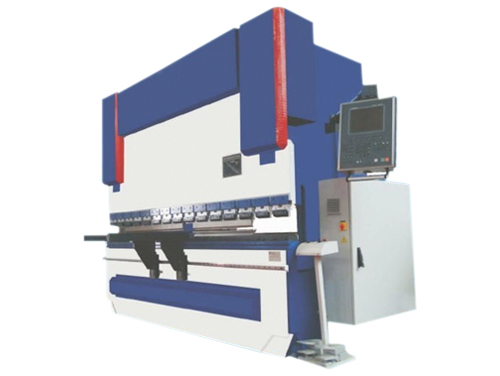

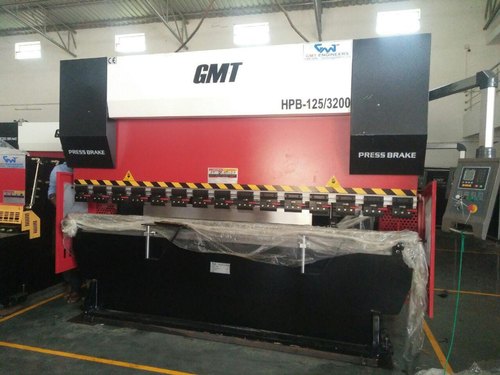

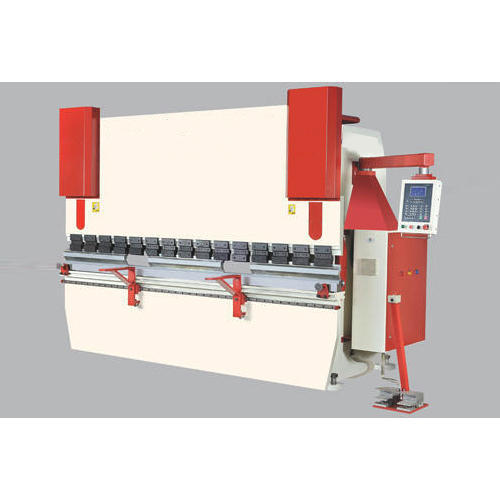

Hydraulic Press Brake Machine

A hydraulic press brake is a machine tool used for bending sheet metal and plate material. It works by clamping the workpiece between a punch and a die, with the force generated by hydraulic cylinders. Press brakes are essential for creating precise bends, angles, and forms in metal fabrication.

Types of hydraulic press brake machine

Bent Metal Components: Brackets, enclosures, cabinets, channels, angles, Z-sections, and complex folded parts for various industries.

Ducting and HVAC Components: Custom-bent parts for air handling systems.

Architectural Metalwork: Facade panels, railing components.

Automotive and Aerospace Parts: Chassis components, panels, structural members.

Appliance Housings: Bent metal parts for washing machines, refrigerators, etc.

Applications in Various Industries

Applications:

Sheet metal fabrication shops, automotive manufacturing, aerospace industry, HVAC manufacturing, construction (e.g., flashing, roofing components), appliance manufacturing, electronics enclosures, heavy machinery manufacturing.

Technology:

Hydraulic System: Consists of pumps, cylinders, valves, and fluid that generate and control the bending force. Offers advantages of consistent pressure throughout the stroke and overload protection.

CNC (Computer Numerical Control): Modern press brakes are typically CNC controlled. The CNC system precisely controls ram position (Y-axis), back gauge position (X, R, Z1, Z2 axes for depth, height, and lateral movement), and sometimes crowning.

Back Gauge Systems: Motorized and programmable back gauges provide precise positioning of the sheet metal for accurate bend line placement. Multi-axis back gauges allow for complex part geometry.

Crowning Systems: Compensate for deflection of the press brake bed during bending, ensuring a consistent bend angle across the entire length of the workpiece. Can be manual, hydraulic, or mechanical.

Tooling: A wide variety of punches (upper tools) and dies (lower tools) are available for different bend angles, radii, and material thicknesses. Quick-change tooling systems enhance efficiency.

Safety Features: Light curtains, laser safety systems, and dual palm buttons ensure operator safety.

Angle Measurement Systems: Lasers or sensors can measure the actual bend angle in real-time and provide feedback to the CNC for automatic correction.

Offline Programming Software: Allows programming of bending sequences and collision detection without occupying the machine.

Material Selection Considerations

For Machine Components:

• Frame/Structure: High-strength welded steel (e.g., carbon steel, structural steel) is critical for rigidity, stability, and handling the immense bending forces.
• Hydraulic Cylinders: Steel, often hardened and ground for smooth operation and durability.
• Piston Rods: Hard chrome-plated steel for wear and corrosion resistance.
• Valves & Pumps: Cast iron, steel, and high-precision machined alloys for hydraulic components.
• Gears & Bearings: Hardened steel for precision and wear resistance.
• Tooling (Punches & Dies): High-carbon tool steel, hardened and ground for wear resistance, strength, and precision. Sometimes coated for increased longevity or reduced friction.

For Workpiece Materials (Being Bent):

• Steel: Carbon steel (mild steel), stainless steel (various grades), galvanized steel, high-strength low-alloy (HSLA) steel. Selection based on required strength, corrosion resistance, and weldability.
• Aluminum Alloys: Various grades, chosen for lightweight, corrosion resistance, and formability.
• Copper & Brass: For electrical components, decorative items.
• Specialty Alloys: Titanium, nickel alloys for aerospace or high-performance applications.

• Factors for Workpiece Selection: Formability (ductility), tensile strength, yield strength, material thickness, grain direction, and desired bend radius.
