Soil Testing Equipment

Instruments and apparatus used to determine the physical, chemical, and mechanical properties of soil samples. This information is critical for civil engineering, agriculture, environmental science, and geological studies.

Types of Soil Testing Equipment

For Physical Properties:

Sieves & Sieve Shakers: For particle size distribution.

Hydrometers: For fine particle size analysis.

Moisture Content Apparatus: Ovens, moisture meters.

Pycnometers: For specific gravity.

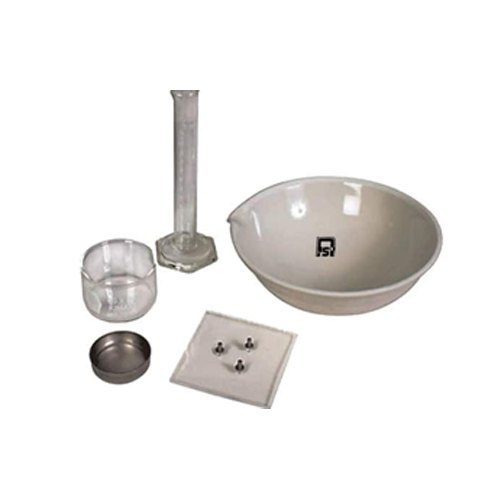

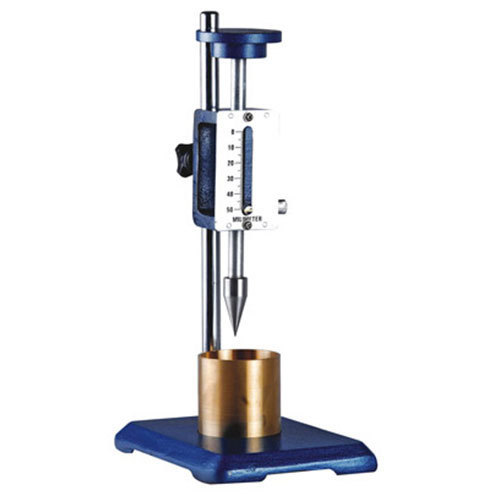

Atterberg Limits Apparatus: Liquid limit, plastic limit, shrinkage limit.

For Mechanical Properties (Strength & Deformation):

Direct Shear Test Apparatus: For shear strength.

Triaxial Compression Test Apparatus: For strength and stress-strain behavior under confinement.

Unconfined Compression Test Apparatus: For cohesive soils.

Consolidometers: For settlement and consolidation characteristics.

Proctor Compaction Test Apparatus: For optimum moisture content and maximum dry density.

CBR (California Bearing Ratio) Test Apparatus: For subgrade strength.

Plate Load Test Equipment: For bearing capacity in situ.

For Chemical Properties:

pH Meters, Conductivity Meters: For basic chemical analysis.

Spectrophotometers, Titration Kits: For nutrient analysis (N, P, K), organic matter.

In-situ Testing Equipment:

Standard Penetration Test (SPT) Equipment.

Cone Penetration Test (CPT) Equipment.

Dynamic Cone Penetrometer (DCP).

Applications in Various Industries:

Civil Engineering & Construction: Foundation design, road construction, dam design, slope stability analysis.

Agriculture: Soil fertility assessment, irrigation management, crop selection.

Geotechnical Engineering: Site investigation, ground improvement.

Environmental Science: Contaminant transport, waste disposal site selection.

Research & Education: Universities and research institutions.

Technology:

Automated Testing Systems: Computer-controlled testing, automated data logging, and analysis for repeatable and accurate results.

Digital Sensors: Load cells, displacement transducers, pressure transducers for precise measurements.

Data Acquisition Software: For real-time monitoring and reporting.

Portable Field Equipment: For quick on-site assessments.

Wireless Communication: For remote monitoring of in-situ tests.

Advanced Analytical Instruments: For detailed chemical composition.

Material Selection Considerations

• Frames & Structures: High-strength steel (e.g., mild steel, stainless steel) for rigidity and stability to withstand test forces. Often painted or chrome-plated for corrosion resistance.
• Load Cells & Transducers: High-grade alloys (e.g., stainless steel, aluminum alloys) for accuracy and durability.
• Test Cells/Molds: Stainless steel, brass, or hardened steel for corrosion resistance and dimensional stability.
• Sieve Frames: Stainless steel or brass. Sieve mesh: Stainless steel, brass.
• Hydraulic/Pneumatic Components: Robust steel, high-quality seals.
• Oven Chambers: Stainless steel.
• Plastics: Durable engineering plastics for non-critical components, funnels, containers.
• Electronics: Standard laboratory-grade components, robust enclosures.
