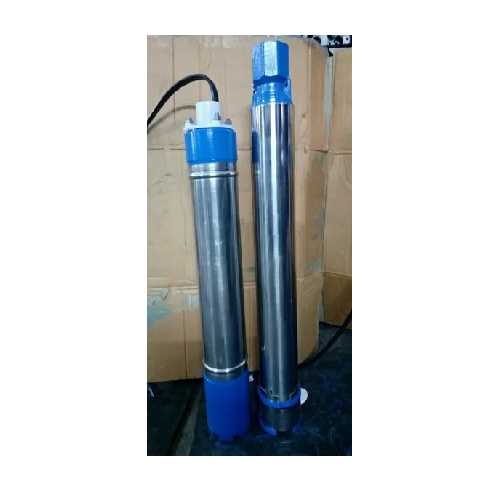

Solar Submersible Pumps

A type of water pump that operates submerged in water (e.g., in a borewell, well, or pond) and is powered directly by solar panels, eliminating the need for grid electricity or diesel generators.

Types of Solar Submersible Pumps

DC Solar Submersible Pumps: Operate directly from DC power from solar panels, often simpler and more efficient for smaller applications.

AC Solar Submersible Pumps with Inverter/VFD: Use an inverter or Variable Frequency Drive (VFD) to convert DC solar power to AC to drive standard AC pumps, suitable for higher power requirements and existing AC pump installations.

Brushless DC (BLDC) Solar Pumps: Highly efficient, long-lasting, and require less maintenance than brushed DC motors.

Surface Solar Pumps: (Though the request is for submersible, it's a related category) Not submerged, but also solar-powered.

Applications in Various Industries:

Agriculture: Irrigation (drip irrigation, sprinklers), livestock watering.

Rural Water Supply: Providing drinking water to remote communities.

Domestic Use: Pumping water for homes without grid access.

Horticulture: Watering greenhouses and nurseries.

Remote Camps/Resorts: Water supply where conventional power is unavailable.

Technology:

Photovoltaic (PV) Panels: Convert sunlight into electricity.

Pump Controller/Inverter/VFD: Optimizes pump operation based on solar irradiance, protects the pump, and converts DC to AC if needed.

MPPT (Maximum Power Point Tracking): Technology in controllers to maximize power output from solar panels.

Submersible Motor: Hermetically sealed, water-cooled.

Pump End: Centrifugal or positive displacement (e.g., helical rotor) designs.

Sensors: Dry-run protection (low water level), over-voltage/current protection.

Material Selection Considerations:

• Pump Housing & Impellers: Stainless steel (304, 316) for corrosion resistance in water, cast iron for some lower-cost options.
• Motor Housing: Stainless steel or cast iron.
• Shaft: Stainless steel.
• Bearings: Water-lubricated bearings (carbon, ceramic) for submersible operation.
• Seals: Mechanical seals (ceramic, carbon) to prevent water ingress into the motor.
• Cables: Submersible-grade waterproof electrical cables.
• Solar Panels: Tempered glass, aluminum frame, encapsulated solar cells.
