Magnetic Rod Manufacturer

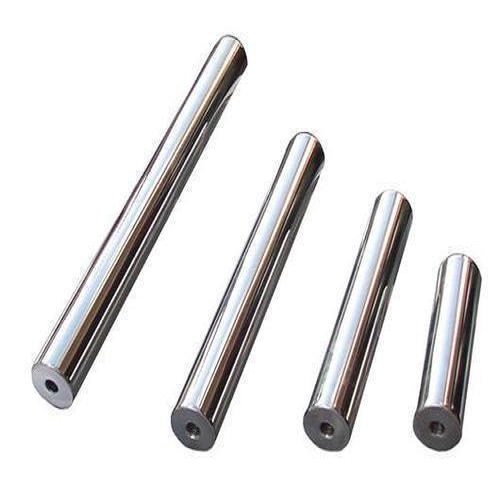

Magnetic rods — often called magnetic bars, magnetic separators, or magnetic rods for filtration — are simple yet powerful components used to remove ferrous contaminants from powders, granules, slurries and liquid streams. Typically consisting of a cylindrical stainless-steel housing that encases one or more high-strength permanent magnets (neodymium or ferrite) and a corrosion-resistant sheath, magnetic rods are designed to trap tramp iron, broken tool bits, nails, and other magnetic debris before they damage downstream equipment or contaminate finished products. Their core purpose is to protect machinery (pumps, mixers, crushers), improve product purity and quality, and reduce maintenance and downtime across many industrial and food-grade processes.

Magnetic rods are valued for their compactness, ease of installation (in chutes, pipes, hoppers or vibratory feeders) and minimal pressure drop in product flow. Many designs feature smooth, sealed surfaces for hygienic use (easy to clean and CIP-compatible) as well as protective coatings or housings suited for corrosive or high-temperature environments. Though conceptually simple, their role in contamination control makes them a standard element of modern material handling and processing lines.

Historically, magnetic separation has roots in the late 19th and early 20th centuries when magnetic drums and separators were developed for ore processing. As industries diversified, compact magnetic rods emerged as an economical solution for capturing small ferrous particles. The arrival of rare-earth neodymium magnets in the late 20th century significantly increased magnetic rod performance, enabling smaller diameters and higher holding forces suitable for fine powders and high-throughput lines.

Product Types & Specifications

Magnetic rods come in a range of classifications based on magnet strength, housing design, size, and intended application. Common ways the market segments them include:

By magnet material and strength

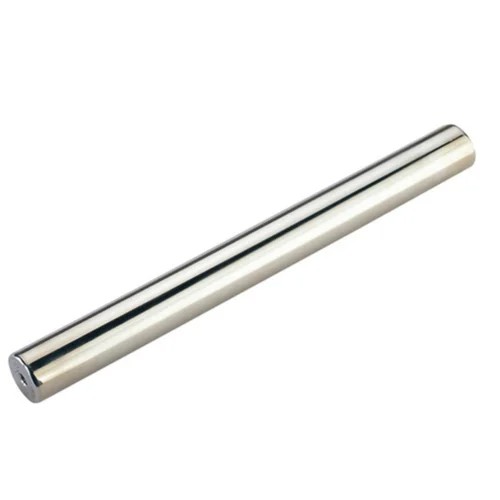

• Neodymium (NdFeB) rods — highest magnetic strength, compact, ideal where maximum holding power is needed.
• Ferrite (ceramic) rods — cost-effective, corrosion-resistant, used for less demanding applications.
• Alnico or samarium-cobalt — niche uses requiring specific temperature or corrosion performance.

By housing and sheath

• Welded stainless-steel sheath (304/316) — food and pharmaceutical grade, easy to sanitize.
• PTFE/Teflon coated or polymer-sheathed — for sticky or abrasive products to ease release.
• Open-frame or grate versions — for higher flow or vibratory feeders.

By configuration / design

• Single-rod straight bar — simple, used in pipelines or small hoppers.
• Multi-rod cartridge or cluster — increased magnetic surface area for higher capture rates.
• Retractable rods — allow removal of trapped metal without line shutdown.
• Flanged or in-line rod assemblies — designed for fixed pipe/flange mounting.
• Sanitary quick-release rods — for processes requiring frequent inspection and cleaning.

By capacity / holding power

• Rated by gauss or pull-force, or by holding force at a specified distance. Typical specs include surface gauss (mT) and maximum particle size capture. Manufacturers often provide performance curves and recommended spacing/number of rods per chute width.

Other specifications

• Lengths: from a few inches up to several meters (customizable).
• Diameters: commonly 12 mm to 50 mm and larger.
• Operating temperature: standard designs to ~80–100°C; specialized magnets and housings can handle higher temps.
• Surface finish and certification: food-grade polish, ATEX or GMP compliance for regulated industries.

Applications & Use Cases

1. Food & Beverage: Removing iron particles from spices, sugar, flour, oils, sauces, and dairy powders to meet food safety standards (HACCP, BRC) and prevent consumer complaints or recalls. Sanitary rods with smooth finishes are common.
2. Pharmaceutical & Nutraceuticals: High-purity processing of tablets, capsules and powders — magnetic rods help meet stringent regulatory requirements by minimizing metallic contamination risk in drug production.
3. Chemical & Plastics: Protection of extruders, injection molding machines and grinding mills by trapping broken bits of tools, fasteners or plant debris; Teflon-sheathed rods reduce product build-up.
4. Mining & Minerals: Pre-concentration and tramp metal removal in feed streams to crushers and grinders, though larger magnetic separators are usually used for high volumes.
5. Recycling & Waste Processing: Separating ferrous components from shredded plastics, electronic waste, and aggregate streams to improve downstream sorting and product purity.
6. Ceramics & Powder Metallurgy: Ensuring fine powders (ceramic, metal powders) are free from iron contamination which can affect sintering and final product properties.
7. Common usage scenarios: Mounted across a chute to capture metal as materials flow; installed inside pipelines with sanitary flanges; placed in hoppers and bins; used as a pre-filter before sieves and screens; or deployed as mobile/retractable units for periodic cleaning.
8. Benefits & efficiencies: Reduced equipment repair costs and unplanned downtime, improved product quality and compliance, simplified cleaning and GMP adherence, decreased waste and rework, and enhanced customer confidence.

We have the best deals for Top 10 Magnetic Rod at our Indian Trade Birds for our beloved consumers. We are leading manufacturer, supplier, exporter and retailer of Magnetic Rod, Top 10 Magnetic Rod, Magnetic Rod. This reduces the prices of the products and increases the profit margins. Our provided a Magnetic Rod is highly appreciated by our clients owing to its low maintenance and rugged construction. It is used for increased bulk density. Our manufactured Magnetic Rod is highly demanded in the market due to our maximum efficiency, effectiveness, and long working life. The provided a machine is assembled from the topmost quality component and ultra-modern technology.
