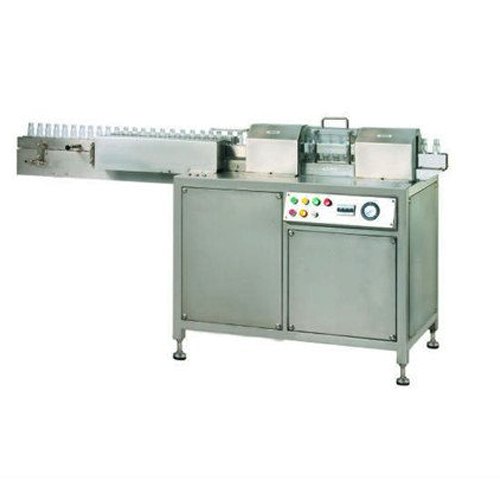

Automatic Air Jet Vacuum Cleaning Machine Comprises A Stainless Steel Frame Mounted On Adjustable Feet. The Containers Are Manually Loaded On The Turn Table.the Loaded Containers Are Fed In Upright Position Via Turn Table Are Inverted Are Inverted In Mouth Down Position And Linearly Feed Through A Chamber Which Is Under A Negative Pressure, A Series Of Nozzles Blow Air In The Container To Clean Their Containers, Are Re-erected With Mouth Up At The Out Feed End. This Automatic Air-jet & Vacuum Cleaning Machine Is Ideal Machine For The Cleaning Of Plastic, Hdpe & Pet Bottles Uses In Pharmaceutical Industry.
Salient Features:
-
Total Cgmp Model.
-
Totally Made Of Ss Pipe Structure With Adjustable Screws For Height Adjustment.
-
Require Less Installation Space.
-
No Timing Setting Is Required To Be Done.
-
Less Change Over Time For Change Parts.
-
High Capacity Blower Suck The Minute Particles From Bottle, Ensure Good Cleaning Of Bottles.
-
A Special Clutch Device Is Incorporated On The Star Wheel System For Stoppage Of Machine In The Event; Bottle Is Over Turned Or Over Diameter.
-
Single Motor Synchronizes Conveyor, Star Wheels. Speed Can Be Varied By The % Speed Pot On Operating Panel.
-
Over Load Clutch Is Provided To Prevent Jamming On Machine.
-
Quick Change Over With Minimum Use Of Tools.used In Products Like Pet Bottles, Glass Bottles Etc.
-
The Machine Is Fully Covered With Acrylic Cabinet And Plc Based.
Application:
-
These Automatic Air Jet & Vacuum Cleaning Machine are mostly used in Pharmaceutical Industry, Food Industry and Beverage Industry
Brand
|
P Mech Engineers
|
Model Name/Number
|
PAAP-60
|
Size/Dimension
|
2000mm(L) X 850mm(W) X 915mm(H)
|
Phase
|
Three
|
Voltage
|
220 V
|
Production Rate
|
60 Bottles/minute
|
Container Neck Diameter
|
28 mm
|
Container Height
|
45 mm to 110 mm
|
Change Parts
|
In Feed Worm/ In Feed Inverter
|
Utility
|
Air-30 CFM @ 5 HP
|
Main Machine
|
1 HP
|
Blower
|
0.5 HP
|
Automation
|
Automatic
|
Frequency
|
50 Hz
|
