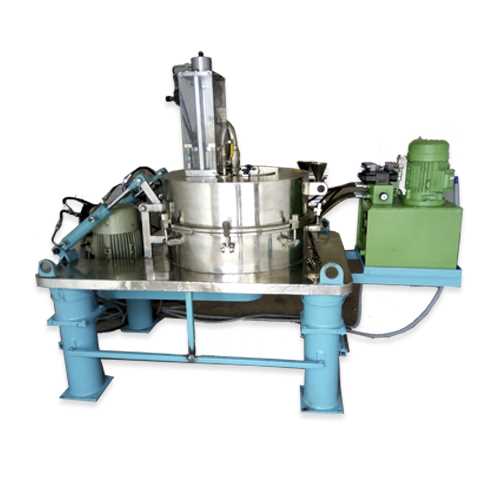

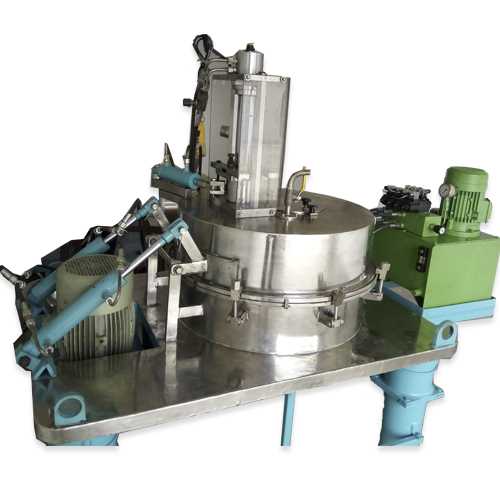

Bottom Discharge Centrifuge The Bottom Discharge Centrifuge is basically a regular vertical basket centrifuge but has added advantage of mechanical removal of solids from the machine and thus saves lot of labour and time. It may be termed as semi automated for that purpose.As with the regular centrifuge, these are used for solid —liquid separation and are available with various options and automation. Also there are other advantages compared to the normal centrifuge.1. The 4 point suspensionOur machines are provided with latest design and 4 point suspension, which has distinctAdvantages• The machines are provided with inertia platform and vibration isolating dampers to give smooth operation. • Practically can be operated without foundation and thus have flexibility of relocation of the machine in the plant. AutomationWe can provide machine with AC variable speed drive, PLC controllers, and hydraulic dual motion scrapping system, with safety devices for full automated operation.A typical Vertical basket bottom discharge centrifuge cycle consists following stages.Feeding :The slurry is introduced to the rotating basket either with pump feed or high head gravity flow to enable uniform speedy feeding. The basket is provided with a filter cloth to retain solids. Because of the high centrifugal force, the solid —liquid separation takes place and the mother liquor is discharged through perforation in the basket and separated.Washing :The washing liquid /water is then introduced which passes through the solid cake, and thus improves the purity of solids and removes extra mother liquor.Spinning :The basket is run at the spinning speed to complete the drying process of material.Scrapping :After spinning the machine for desired time, to achieve the maximum dry solids, a scraper knife is introduced and advances in to the rotating basket to discharge the solids. The solids are discharged through the opening in the basket bottom. The entire operation of solids removal is programmed in such a way so as to achieve the best results with minimum efforts and having large safety factors and options.
