Woodmaster Machines Private Limited

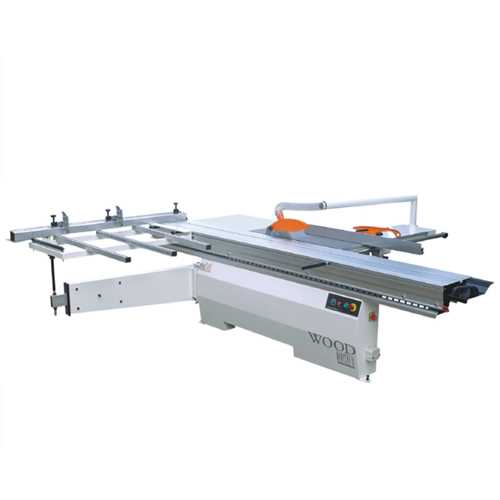

Dimension Saw With Scoring Cutter

₹ 280000.00  Incl. GST ₹ 237288.14 Excl. GST

Description

Leading Manufacturer of dimension saw with scoring cutter from Ludhiana.
Product Details:
Brand Woodmaster
Front Guide telescopic upto (mm)| 3200
Dust suction dia (mm) 125
Saw Shaft Speed (RPM) 4500
Spindle diameter of main saw blade (mm) 30
Main Saw blade diameter (mm) 300
Sliding Table Size (mm) 380 x 3200
Parallel Fence Cutting (mm) 1250
Main drive motor ( H.P.) 5
Mechanism to tilt the blade Manually
Max. cutting height at 90 Degree (mm) 80
Model Number WM-245

Woodmaster Machines Pvt Ltd is engaged in manufacturing premium quality Dimension Saw With Scoring Cutter since its incorporation. The Saw manufactured by us is compact in design and requires low maintenance.

Scoring Units
Max. cutting height 6 mm
Scoring blade diameter 120 mm
Scoring Blade Spindle diameter 22 mm
Motor for scoring cutter 1 H.P.
Scoring shaft speed 7200 RPM
Very precise adjustment of scoring Manually
Machine Dimensions (LxBxH) 3300 x 3700 x 1050
Machine Weight 750 Kg.
