Vaishno Switchgear Pvt Ltd

FUSE BASES AND HOLDERS

₹ 1100.00  Incl. GST/PCS ₹ 932.2 Excl. GST

Description

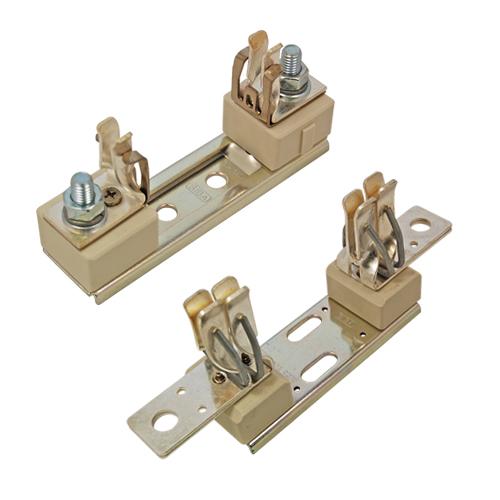

HRC FUSE BASES OPEN TYPE AND FUSE HOLDERS CLOSED TYPE

VAISHNO offers a wide range of FUSE BASES to take high breaking capacity fuse links. These bases have a special type of silver plated contacts made out of electrolytic copper for low watt loss. The base is moulded out of high grade flame retardant, non-hygroscopic phenolic moulding powder conforming to IS: 1300 / BS771 with a high gloss finish. These Bases can also be supplied with glass reinforced polyester (DMC) moulding for better mechanical & electrical properties. A spring steel rings maintain their intrinsic elasticity even at elevated temperatures.


DescriptionFuse holders for LV Industrial Fuse Links, clip on and bolted type.
ApplicationControl Equipments, Circuit and Motor Production, Lighting and heating Equipments.
Ratings(a) Volts- 550v AC, (b) Amp- 160A- 630A,
Breaking Capacity80kA,
Rated frequency 50Hz/ 60Hz
MaterialIndustrial grade non hygroscopic, Phenolic Molding/ Reinforced Polyester (DMC).
Mounting TypeStud.
 Technical Specification:
  • Low watt loss results into low temperature rise and considerably power saving.
  • Most reliable and safe operation.
  • High rupturing capacity @80KA.
  • High resistance to aging.
  • Low cutoff current causes least stress to downstream equipments.

Moulded Fuse Base divided into 5 Groups:

  • Circlip Connection                              250A.
  • Spring Loaded Connection              250A.
  • Circlip Connection                             400A.
  • Spring Loaded Connection              400A.
  • Spring Loaded Connection              630A.
VAISHNO offers a versatile range of FUSE HOLDERS consisting of Fuse carriers & Fuse bases moulded out of high grade flame retardant, non-hygroscopic phenolic moulding powder conforming to IS : 1300 / BS : 771 with a high gloss black finish. All the current carrying non-ferrous parts are tin / silver plated to ensure better conductivity & to prevent oxidation while all ferrous parts are zinc plated to avoid rusting.They are simple in construction with minimum number of components. Carrier contacts and Base contacts are mountedusing location ridges formed on the mouldings, assuring perfect alignment. 20A. Fuse carriers have a single piece Phosphor bronze clip, while all other type Fuse carriers have a single piece press brass spin riveted contact. The base is also made up of a single piece extruded brass tinned contact having adequate size of cable hole to accommodate aluminum cable.Stringent quality control during production ensures excellent end product. A well equipped test laboratory as per IS: 13703 / IEC 60267 is the key to quality adherence.


DescriptionFuse holders for LV Industrial Fuse Links, clip on and bolted type.
ApplicationControl Equipments, Circuit and Motor Production, Lighting and heating Equipments.
Ratings(a) Volts- 550v AC, (b) Amp- 20A- 125A
Breaking Capacity-80kA,
Rated frequency 50Hz/ 60Hz
MaterialIndustrial grade non hygroscopic, phenolic moulding.
Mounting TypeScrew/ Stud/ Bus Bar

Bakelite Moulded Fuse Holder divided into 9 Groups:
  • Front connection                      20A.
  • Bus Bar Connection               20A.
  • Rear Connection                     20A.
  • Front Connection                    32A.
  • Bus Bar Connection               32A.
  • Rear Connection                     63A.
  • Front Connection                     63A.
  • Bus Bar Connection             125A.
  • Rear Connection                   125A.

PRICE : F.O.R Noida.
PAYMENT :   100% Payment  INVOICE  against delivery.
PACKING : Polythene packing. AND CORROGATED BOX
IGST /CGST+SGST : Charged extra.
FREIGHT: Charged extra as applicable.
GUARANTEE : 12 months from the date of dispatch.

SELLER: Vaishno Switchgear Pvt Ltd
