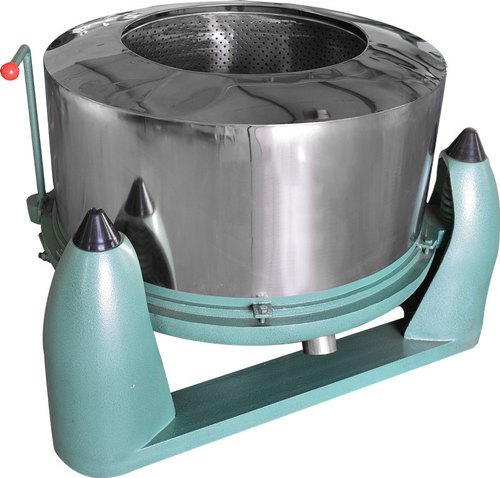

Leading Manufacturer of hydro extractor for laundry, laundry hydro extractor, industrial hydro extractor, commercial hydro extractor, heavy duty hydro extractor and hydro extractor for industries from Salem.
Product Details: |
| Usage/Application | Laundry |
| | |
| Capacity | 15,20,25,50,100,150,200 Kgs |
| Drive Motor | Yes |
| Material | SS 304 |
| Steel Grade | 304,304L,316,316L |
Being quality oriented organization, we are offering S Hydro Extractor for Laundry to our clients. This extractor is acclaimed for its best performance. It is able to operate in reliable manner for years. This extractor is based on automatic operation and is offered in different grades to our clients. It is based on hydraulic concept and is reliable for years. This extractor is delivered within specified time frame to our clients.
Features- Durable
- Longer service life
- Cost effective
Specifications- Outer Drum Cylindrical drum mode out of S. S
- Inner Drum Revolving perforated drum made out of S.S. 304/316
- Volute M. S. Fabricated shell & bottom
- Drive System The machine is driven by 440V, 3pH TEFC motor through clutch pulley V belts
- Brake Mechanical leg brake system
- Bearing Housing Made out of graded cast iron machines for close tolerance to heavy duty bearings with proper lubrication
- External Finish Polished S. S. surface, attractive color ASPA paint on M. S. and C. I. surfaces
Technical Specification| Model | Inner Drum dia/Ht | Drum R.P.M | Motor H.P | Capacity Kgs (WET) |
| NHE -25 | 625/350 mm | 1000 | 3 | 25 Kgs |
| NHE -35 | 775/350 mm | 1000 | 5 | 40 Kgs |
| NHE -37 | 925/450 | 785 | 5/7.5 | 50 Kgs |
| NHE -45 | 1025/50 mm | 785 | 7.5 | 70 Kgs |
| NHE -49 | 1225/50 mm | 775 | 10 | 100 Kgs |
