Product Details:
• Flow Rate : UP TO 100 M3 / Hr
• Differential Pressure 24 Bar(for more system pressures, contact factory assistance)
• Viscosity : UP TO 1,00,000 cst
• Temperature : UP TO 150°C
• Suction Lift : 8 mlc Max
MATERIAL OPTIONS:
• Housing Parts: AISI304, AISI316, AISI316L
• Rotor & Shaft: AISI304, AISI316, AISI316L
• Stator : NBR, HNBR, EPDM, CSM, Q
white, food-grade, abrasion resistant & high-temperature resistant variants.
Salient Features:
- Self Priming
- Non – Clogging
- Positive displacement
- Pulsation free delivery
- Temperature up to 200ºc
- Flow rate proportional to pump speed
- Pumping direction reversible
- Can handle a high percentage of solids output up to
- 200m3/hr,
- Vulcanized stator simple to be changed
- High resistance to wear
- Simple construction
- Easy to dismantle & assemble
- Pressure 6 up to 30kg/cm2 even at small quantities or low
- speed
- No valves essential for delivery.

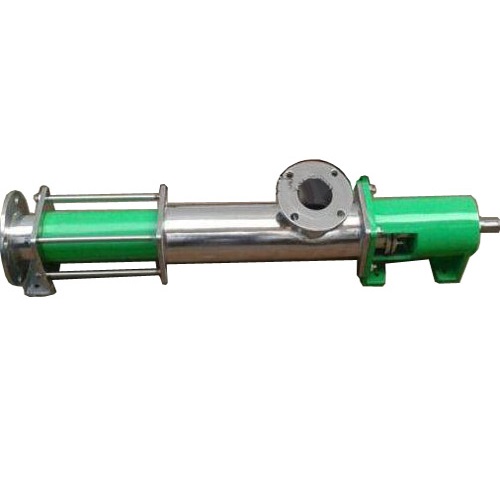

The main components which characterize the pump are a metallic single helical rotary part ROTOR and fixed double-helical resilient polymer part STATOR in which the rotor turns and thereby a complex progressive sealing line (CPL) is maintained. Whilst the rotor rotates inside the stator, the cavities formed between them progress from suction to discharge end, gently carrying the media.
DRIVE ARRANGEMENTS
•DIRECT drive electric motor, geared motor, gearbox, Mechanical Speed Variator, Eddy Current DC Drive, Hydraulic, Pneumatic, Petrol & Diesel Engines.
• For accurate and variable flow rates, AC Variable Frequency Drives can be used.
Screw Pump Manufacturer, Supplier
- Effluent Treatment - Raw Sewage water Digested & activated
- sludge drained sludge up to 40% dry contents.
- Chemicals - Acidic & Alkaline slurry dyes alum, viscous Adhesive dispersion & Emulsion detergent Slurry
- soap slurry.
- Dairy - Milk, Butter, Cream, Crystal, Paste, Soft Cheese, Cottage Cheese.
- Fruits & Vegetable Processing - Fruits & Vegetable juices & pulp tomato pulp.
- Sweets & Confectioneries - Glucose, Chocolate Compounds jams, Honey,
- Paints & Varnishes - Dispersion paints, Printing Ink, Oil Pesters, Solvent Binding agent, High Viscous oil very sore oil / Furnace Oil / Lubricating Oil / Grease.
- Pulp & Paper - Alum solutions, High consistency pulp, Coating paint, Glue, Milk of lime, Sludges.
- Sugar & distilleries - Juices, Magma syrups, Molasses, Waste Water sludge.
