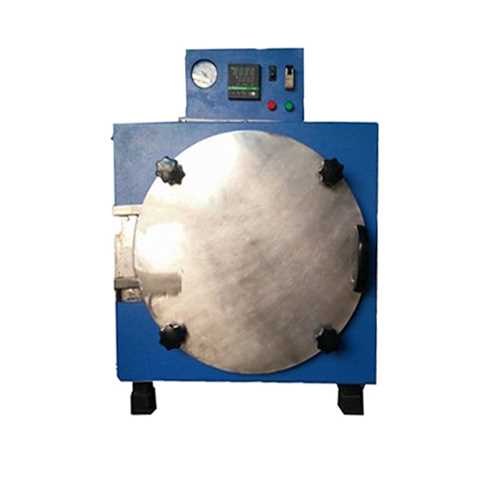

Vaccum Oven

₹ 35000.00  Incl. GST ₹ 29661.02 Excl. GST

Description

We are a leading Manufacturer of Vacuum Oven from Ahmedabad, India.
Applications :
Applications of vacuum oven include moisture content determination, dry sterilization, purification and out gassing of solids etc. Vacuum Oven is widely us in laboratory, pharmaceutical, microbiology etc. Vacuum Oven is used for drying heat sensitive materials such as powder to extract moisture. As vacuum drying lowers the boiling point; therefore, losses of compounds other than water are minimized. Vacuum Oven is available in two types one is Square and other is Round with temperature range up To 150°C or 200°C Construction:
Exterior : Exterior Body is made of M. S. Sheet with powder coated.
Inner Chamber : Inner chamber is made of Heavy gauge stainless steel 304 or 316 with arc
welding. Insulation : Insulation with high density glass wool insulation.
Door : The door is made of thick gauge of steel with toughened glass and durable clamp to close the door with silicone gasket at chamber.
Technical Specifications Temperature range : Ambient+5°C to 200°C
Temperature sensor : PT100
Temperature controller : Digital microprocessor PID controller/ Dual display of SV & PV
Vacuum range : Up to -760 mmHg
Vacuum fittings : Vacuum valve / exhaust valves
Shelves : Removable SS shelves
Power supply : 220 Volts 50Hz VACUUM OVEN NIC-001
Optional : Temperature up to 250°C/ All SS 304 construction (GMP)/ Digital vacuum control through solenoid valves/ Diaphragm valves for inert gas/ Timer 99 hours 59 min/ Oil free vacuum pump

ROUND VACUUM OVEN STANDARD SIZE
MODEL NO CHAMBER SIZE(DIAXL) VOLUME IN LITERS
NIC 200 x 200 mm 6
NIC 250 x 250 mm 12
NIC 250 x 300 mm 14
NIC 300 x 300 mm 21


SQUARE VACUUM OVEN STANDARD SIZE

MODEL NO

CHAMBER SIZE( WX DX H)

VOLUME IN LITERS

NIC

200X200X200 mm

8

NIC

300X300X300 mm

28

NIC

355X355X355 mm

45

NIC

455X455X455 mm

95

NIC

455X455X609 mm

127

NIC

609 X609X609 mm

226

MODEL NO

CHAMBER SIZE( WX DX H)

VOLUME IN LITERS

NIC

200X200X200 mm

8

NIC

300X300X300 mm

28

NIC

355X355X355 mm

45

NIC

455X455X455 mm

95

NIC

455X455X609 mm

127

NIC

609 X609X609 mm

226
