Kpm Engineering Solutions Pvt ltd

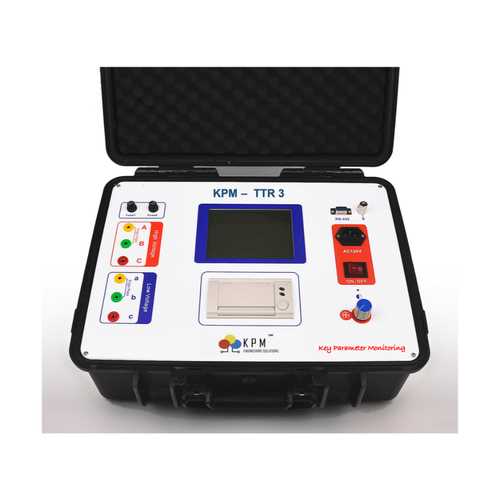

Turns Ratio Tester

₹ 300000.00  Incl. GST ₹ 254237.29 Excl. GST

Description

Technical Specifications : 1. Ratio measurement range 2. 100002. Group measurement 3. 123. Phase measurement error 4. Degree4. Ratio measurement error 5. 1000 ± 0.2% 1000—10000 ± 0.5%5 6. Power supply AC220V ± 10%, 50Hz6 7. Size : 400*350*200 mm3

Features :
1. The voltage ratio measurement of three or singe phase transformer
2. The group vector measurement of three phase transformer.
3. The polarity measurement of single phase transformer or CT/PT (CT that knee-point voltage should be more than 80V)
4. Voltage ratio error calculation
5. Voltage ratio range calculation of three phase transformer
6. Current transformer ratio measurement
7. Excitation current measurement in ratio testing
8. Reproduce the AC test voltage from power source to reduce the effects of bad power source
9. Save the test results in the memory internal the tester
10. Print the test results by micro printer
11. Reverse connection detection unit to prevent high pressure injection operation
12. Over current protection in test voltage
13. Upload the test results to make word report by RS232 interface

Additional Information:

  • Production Capacity: 10
  • Delivery Time: 3-4weeks
Brand KPM ( Key Parameter Monitoring )
Usage/Application Industrial
Model Name/Number TTR3
Ratio Range 1-10000
Accuracy 100%
Display Type 320*240 LCD.
Frequency 50 HZ
Material ss
Voltage 220V
Size 400 x 350 x 200 mm3
Power supply AC 220 V
Weight 7kg

SELLER: Kpm Engineering Solutions Pvt ltd

Turns Ratio Tester

Product code (MPN): ITB-CD382208
Availability:In Stock
₹ 300000.00  Incl. GST ₹ 254237.29 Excl. GST
  • Description
    Technical Specifications : 1. Ratio measurement range 2. 100002. Group measurement 3. 123. Phase measurement error 4. Degree4. Ratio measurement error 5. 1000 ± 0.2% 1000—10000 ± 0.5%5 6. Power supply AC220V ± 10%, 50Hz6 7. Size : 400*350*200 mm3

    Features :
    1. The voltage ratio measurement of three or singe phase transformer
    2. The group vector measurement of three phase transformer.
    3. The polarity measurement of single phase transformer or CT/PT (CT that knee-point voltage should be more than 80V)
    4. Voltage ratio error calculation
    5. Voltage ratio range calculation of three phase transformer
    6. Current transformer ratio measurement
    7. Excitation current measurement in ratio testing
    8. Reproduce the AC test voltage from power source to reduce the effects of bad power source
    9. Save the test results in the memory internal the tester
    10. Print the test results by micro printer
    11. Reverse connection detection unit to prevent high pressure injection operation
    12. Over current protection in test voltage
    13. Upload the test results to make word report by RS232 interface

    Additional Information:

    • Production Capacity: 10
    • Delivery Time: 3-4weeks
    Brand KPM ( Key Parameter Monitoring )
    Usage/Application Industrial
    Model Name/Number TTR3
    Ratio Range 1-10000
    Accuracy 100%
    Display Type 320*240 LCD.
    Frequency 50 HZ
    Material ss
    Voltage 220V
    Size 400 x 350 x 200 mm3
    Power supply AC 220 V
    Weight 7kg
