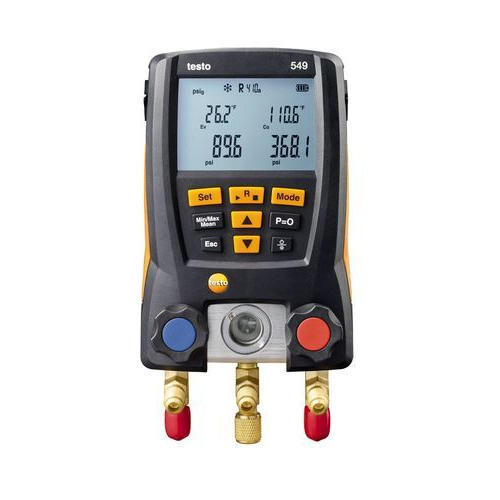

Product Description When carrying out maintenance or installation work on refrigeration systems and heat pumps, are you increasingly noticing that the use of analog manifolds is laborious and time-consuming? If so, the testo 549, our entry-level digital manifold, is the perfect choice for you
Product Details
|
Body Material
|
ABS Plastic
|
|
Packaging Type
|
Box
|
|
Brand
|
TESTO
|
|
Model Name/Number
|
Testo 549
|
|
Display Type
|
Digital
|
|
Measuring Range
|
-50 to +150 DEG CEL
|
|
Usage/Application
|
Two temperature-compensated pressure sensors
|
This 2-way manifold can be used for 60 refrigerants and offers practical solutions for your everyday work:
- Two temperature-compensated pressure sensors ensure fast, precise measurement of high and low pressure, and automatic calculation of the evaporating and condensing temperature
- Two connections for external temperature probes: with temperature probes attached (optional), the digital manifold can calculate superheating and subcooling simultaneously and in real time. This means you can do away with manual comparisons, which are prone to error, and obtain fast, accurate results
- Leakage test of refrigeration systems: the manifold can carry out a temperature-compensated leakage test of the system for rough tightness testing. For this, the initial system pressure is compared with the system pressure at the end of the measurement, so that the difference (if there is one) can be displayed immediately
- Can be used for standard refrigerants: the 60 most common refrigerants are stored in the instrument as standard
You can also view the temperature difference via the 2-way manifold. The automatic heat pump mode, which makes switching over the refrigerant hoses unnecessary, is also really practical.
Digital manifold: sturdy and practical
The testo 549 digital manifold features a robust 2-way valve block made of metal with 3 connections and 3 hose holders, is easy to handle and can even withstand harsh environmental conditions. With its solid housing, the instrument is reliably protected against impacts in compliance with protection class IP 42. You can use the suspension hook to secure the manifold during the measuring process. Thanks to the illuminated display, you can read off the readings easily, even in dark environments.
