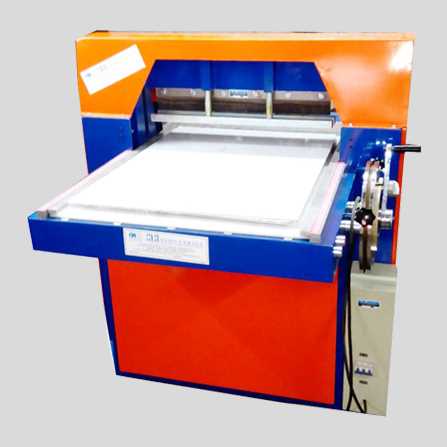

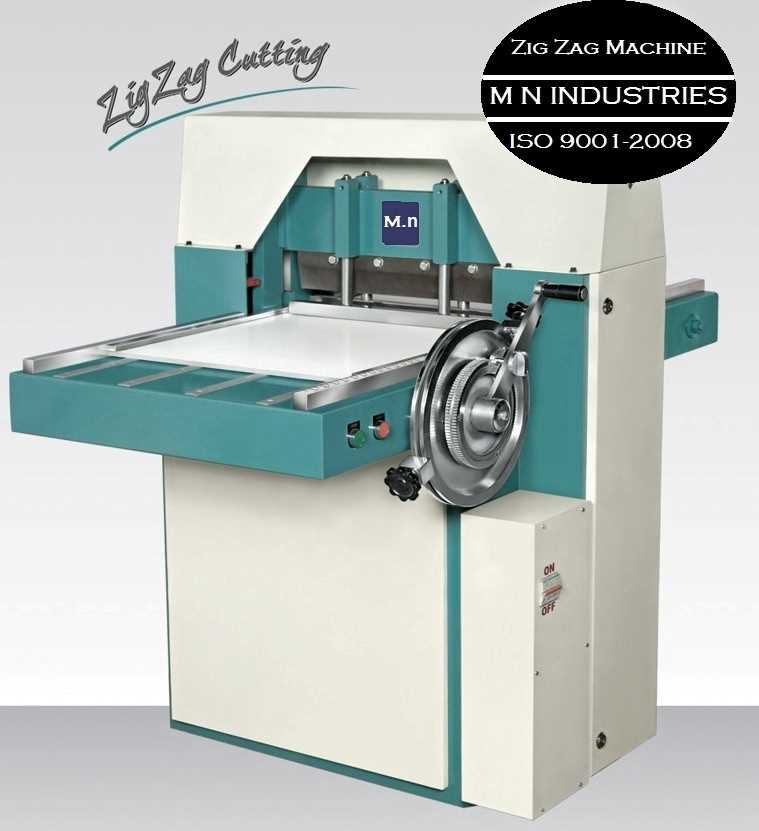

FABRIC SAMPLE CUTTING MACHINE
Fabric Cutting Machine – Motor Driven Type, ( Auto Stop Type – Standard Design) Having Zigzag/Plain Type Cutting Blade of as per your requirement Length Complete with Three Phase Electric Motor & Control Panel.
Standard Features
• Easy operation
• A sturdy structure fabricated from M.S. Sheet metal structure, so as to get vibration-free operation.
• A hand wheel operated the device with stopper is provided to get to & fro motion of sliding table, with calibration which guarantees the equal, accurate & high production of samples.
• Provided with adjustable screw arrangement with eccentric to get the blade position to the maximum upward / downward.
• In order to get efficient cutting of heavy fabric like furnishing/filter cloth, totally enclosed type heavy duty.
• Speed reduction gearbox unit provided along with electric motor machine will be completely covered and provided with safety guard covers.
• A calibrated scale bar will be provided on the sliding table for the ease of operator to decide the size of the sample to be cut.
• The machine can cut fabric layer up to 50 mm at the single stroke.
• The machine will be provided with photoelectronic sensors on feeding side, in order to avoid accident to the operator, while cutting the fabric.
• Cutting board is provided with the machine, in order to protect the blade from damage during the cutting operation.• A laser line marking system provided to locate zero mark reference on fabric.
• A hand wheel is provided to move the sliding table to get the desired size of samples to be cut.
• To cut the fabric sample, press the green push button switch, the machine will stop automatically after cutting the fabric
• Models are available in blade size of 13”, 18”, 24”, 32”, 36”, 48” 60”.
Specifications:
• Fabric cutting speed: Fabric cutting speed: 10 strokes / min.
• Capacity of cutting maximum fabric layers thickness : 50 mm
• Adjustment of blade carrying bracket to upward and downward direction: 45 mm
• Auto operation: once press the green push button, the machine will cut the fabric sample & stop automatically.
• Drive required: A. C. Electric motor 440 volts, 3 phase, 1440 rpm, with suitable control panel and switch.
