MTA Technologies

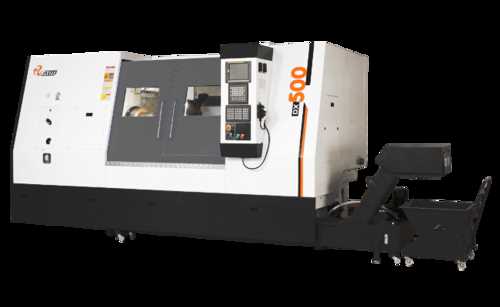

CNC Turning Center

₹ 1050000.00  Incl. GST ₹ 889830.51 Excl. GST

Description

Offering you a complete choice of products which include DX 500 CNC Turning Center, DX 200 CNC Turning Mill Center, DX 200 CNC Turning Center and DX 60 CNC Turning Center.
Description:
The Dx Large Series Machines Are Designed For Heavy Component And Interrupted Cutting There By Allowing Machining With Superior Finishing And To Retain Accuracy For Longer Time Along With Ease Of Service, Excellent Maintainability And Flexibility. The Series Is An Ideal Partner For Machining Large Diameter Components Used In Automotive, Heavy Machinery, Oil & Gas And Infrastructure Application.

Key Features:
  • Single Piece Slant Saddle Construction.
  • Rigid And Durable Structure For Hard Part Turning.
  • Powerful High Torque Spindle With Rigid Headstock.
  • Wider Liner Motion Type Guide Ways.
  • Step-up Construction For Vibration Free Heavy Cutting.
  • Heavy Duty – High Precise Bi-directional Servo Turret.
  • Live Tool Turret Option Available For Milling Operations.
  • Ergonomically Design Concept.
  • Efficient Chip Disposal.
  • Tail Stock With Hydraulic Quill.
  • Hydraulic Chucking.
  • Auto And Manual Coolant System.
  • Electrical With Quality Devices & Panel With A.c.
  • Centralized & Programmable Lubrication.

Product Details:
Brand Jyoti
Model Name/Number DX 500
Swing Over Bed 800 mm
Od Turning Tool Size 32 X 32 mm
Tailstock Quill Dia 130 mm
Std. Turning Diameter 550 mm
Max. Turning Diameter 700 mm
Max. Turning Length 1000 mm
X-Axis Travel 360 mm
Z-Axis Travel 1000 mm
Rapid Feed 24 m/min
Spindle Motor Power - Fanuc 18.5 kW
Spindle Motor Power - Siemens 27.8 kW
Spindle Speed Range 2500 RPM
Spindle Bore 80 mm
Spindle Nose A2-8
Max. Bar Capacity 65 mm
No. of Station 8
Max. Boring Bar Diameter 50 mm
Quill Stroke 150 mm
Thrust 1000 kgf
Positioning Uncertainty 0.01 mm
Repeatability 0.005 mm
Machine Weight 9500 kg
Length 5500 mm
Width 2860 mm
Height 2250 mm
SELLER: MTA Technologies

CNC Turning Center

Product code (MPN): ITB-C41A8A32
Availability:In Stock
₹ 1050000.00  Incl. GST ₹ 889830.51 Excl. GST
  • Description
    Offering you a complete choice of products which include DX 500 CNC Turning Center, DX 200 CNC Turning Mill Center, DX 200 CNC Turning Center and DX 60 CNC Turning Center.
    Description:
    The Dx Large Series Machines Are Designed For Heavy Component And Interrupted Cutting There By Allowing Machining With Superior Finishing And To Retain Accuracy For Longer Time Along With Ease Of Service, Excellent Maintainability And Flexibility. The Series Is An Ideal Partner For Machining Large Diameter Components Used In Automotive, Heavy Machinery, Oil & Gas And Infrastructure Application.

    Key Features:
    • Single Piece Slant Saddle Construction.
    • Rigid And Durable Structure For Hard Part Turning.
    • Powerful High Torque Spindle With Rigid Headstock.
    • Wider Liner Motion Type Guide Ways.
    • Step-up Construction For Vibration Free Heavy Cutting.
    • Heavy Duty – High Precise Bi-directional Servo Turret.
    • Live Tool Turret Option Available For Milling Operations.
    • Ergonomically Design Concept.
    • Efficient Chip Disposal.
    • Tail Stock With Hydraulic Quill.
    • Hydraulic Chucking.
    • Auto And Manual Coolant System.
    • Electrical With Quality Devices & Panel With A.c.
    • Centralized & Programmable Lubrication.

    Product Details:
    Brand Jyoti
    Model Name/Number DX 500
    Swing Over Bed 800 mm
    Od Turning Tool Size 32 X 32 mm
    Tailstock Quill Dia 130 mm
    Std. Turning Diameter 550 mm
    Max. Turning Diameter 700 mm
    Max. Turning Length 1000 mm
    X-Axis Travel 360 mm
    Z-Axis Travel 1000 mm
    Rapid Feed 24 m/min
    Spindle Motor Power - Fanuc 18.5 kW
    Spindle Motor Power - Siemens 27.8 kW
    Spindle Speed Range 2500 RPM
    Spindle Bore 80 mm
    Spindle Nose A2-8
    Max. Bar Capacity 65 mm
    No. of Station 8
    Max. Boring Bar Diameter 50 mm
    Quill Stroke 150 mm
    Thrust 1000 kgf
    Positioning Uncertainty 0.01 mm
    Repeatability 0.005 mm
    Machine Weight 9500 kg
    Length 5500 mm
    Width 2860 mm
    Height 2250 mm
