Lathe Machine Spare

Introduction:

A lathe machine is a machine tool that rotates a workpiece about an axis of rotation to perform various operations such as cutting, sanding, knurling, drilling, deformation, facing, and turning, with tools that are applied to the workpiece to create an object with symmetry about that axis. Lathe machine spares are replacement parts and components essential for the maintenance, repair, and optimal functioning of a lathe. They ensure the machine's accuracy, efficiency, and longevity, allowing it to continue performing its various machining operations effectively.

Types of Product:

  1. Work Holding Devices:
  • Chucks (Jaw Sets): 2-jaw, 3-jaw (universal), 4-jaw (independent), 6-jaw chucks. Chuck Jaws (hard jaws, soft jaws, master jaws).
  • Collets: Precision clamping devices for small workpieces.
  • Faceplates: For mounting irregularly shaped workpieces.
  • Driving Dogs: For holding workpieces between centers.
    1. Tool Holding Devices:
      • Tool Posts: Standard square tool posts, quick-change tool posts (wedge type, piston type).

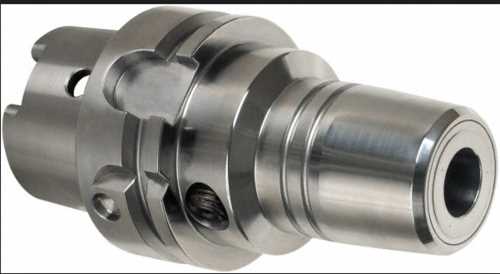

      • Tool Holders: For various operations (turning, boring, threading, parting, knurling).
      • Boring Bars: For internal diameter machining.
    2. Tailstock Components:
      • Quill/Sleeve: The movable part of the tailstock.
      • Dead Centers: Stationary support for workpiece.
      • Live Centers: Rotating support for workpiece (with internal bearings).
      • Drill Chucks: For holding drills in the tailstock.
    3. Carriage & Apron Components:
      • Lead Screw: Threaded rod for automatic longitudinal feed and thread cutting.
      • Cross-Slide Screw: For transverse feed.
      • Half Nuts: Engage with the lead screw for thread cutting.
      • Gears: Change gears for feed rates and thread cutting, gears within the apron.
      • Clutches: For engaging feeds.
    4. Headstock Components:
      • Spindle Bearings: Support the main spindle.
      • Spindle Gears: For speed changes.
    5. Other Mechanical Parts:
      • Belts: For power transmission from motor to headstock.
      • Bearings: Various types (ball, roller, plain) throughout the machine.
      • Slideways/Gibs: For precise movement of carriage, cross-slide, and tailstock.
      • Levers & Handwheels: For manual control.
    6. Electrical Components: Motors, switches, wiring, control panels, limit switches.
    7. Consumables/Wear Parts:

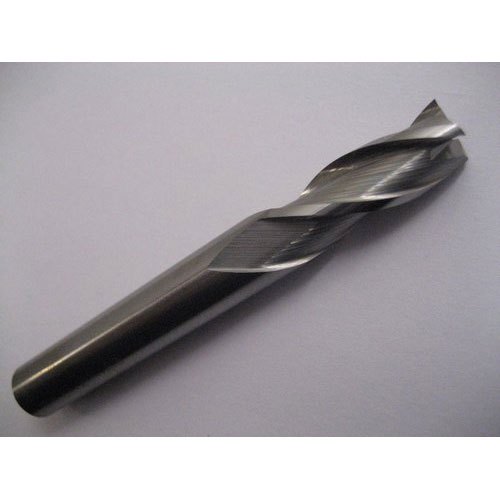

      • Cutting Tools: Inserts, HSS tools.
      • Lubricants & Coolants: For machining and machine maintenance.

Applications, Technology in Various Industries:

  • Manufacturing: Machining components for automotive, aerospace, machinery, and general engineering industries.
  • Tool & Die Making: Creating molds, dies, and specialized tools.
  • Repair & Maintenance Shops: For repairing shafts, re-facing parts, and general workshop tasks.
  • Education & Training: In vocational schools and technical institutes for teaching machining skills.

Material Selection Considerations:

  • Machine Bed, Headstock, Carriage, Tailstock (Main Castings): High-grade grey cast iron (e.g., FG 200, FG 250) due to its excellent vibration damping properties, rigidity, and good machinability. Some larger frames might use welded steel structures.
  • Spindles & Shafts: Alloy steels (e.g., EN8, EN9, EN24, 40CrMo) for high strength, toughness, and ability to be heat-treated for surface hardness.
  • Gears: Alloy steels (e.g., 20MnCr5, 42CrMo4) that can be case-hardened or through-hardened for high wear resistance and strength.
  • Lead Screws & Nuts: Lead screws are typically alloy steel (precision ground). Half nuts are often bronze (e.g., phosphor bronze) for good wear properties against the steel screw and self-lubricating characteristics.
  • Chuck Jaws: Hardened steel (e.g., 40Cr, 42CrMo) for durability and grip; soft jaws are often mild steel or aluminum that can be machined to custom shapes.
  • Tool Holders: High-strength steel or alloy steel for rigidity and clamping force.
  • Guideways/Slideways: Often cast iron integrated into the bed, hardened and ground for precision, or sometimes separate hardened steel inserts.
  • Bearings: High-quality bearing steel (e.g., 100Cr6) for rolling element bearings.
  • Levers & Handwheels: Cast iron, steel, or durable engineering plastics.
  • Electrical Components: Standard electrical materials (copper conductors, various insulation materials, metal housings).
