Actuators

Introduction

An actuator is a mechanical device that converts energy (electrical, hydraulic, pneumatic, or manual) into mechanical motion. It operates a mechanism or system by causing a change in position or state, typically by controlling a valve, damper, or other industrial device.

Types of Product

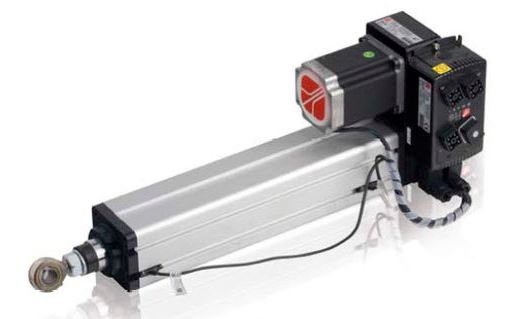

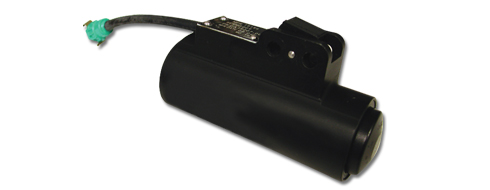

  • Electric Actuators: Use an electric motor to generate torque.
    • Rotary Actuators: Produce rotary motion (e.g., for ball valves, butterfly valves).

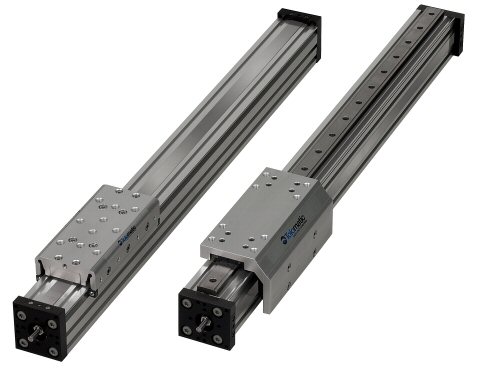

    • Linear Actuators: Produce linear motion (e.g., for gate valves, dampers).
    • Multi-turn Actuators: For valves requiring multiple turns (e.g., gate valves).
    • Quarter-turn Actuators: For valves requiring 90-degree rotation (e.g., ball, butterfly valves).

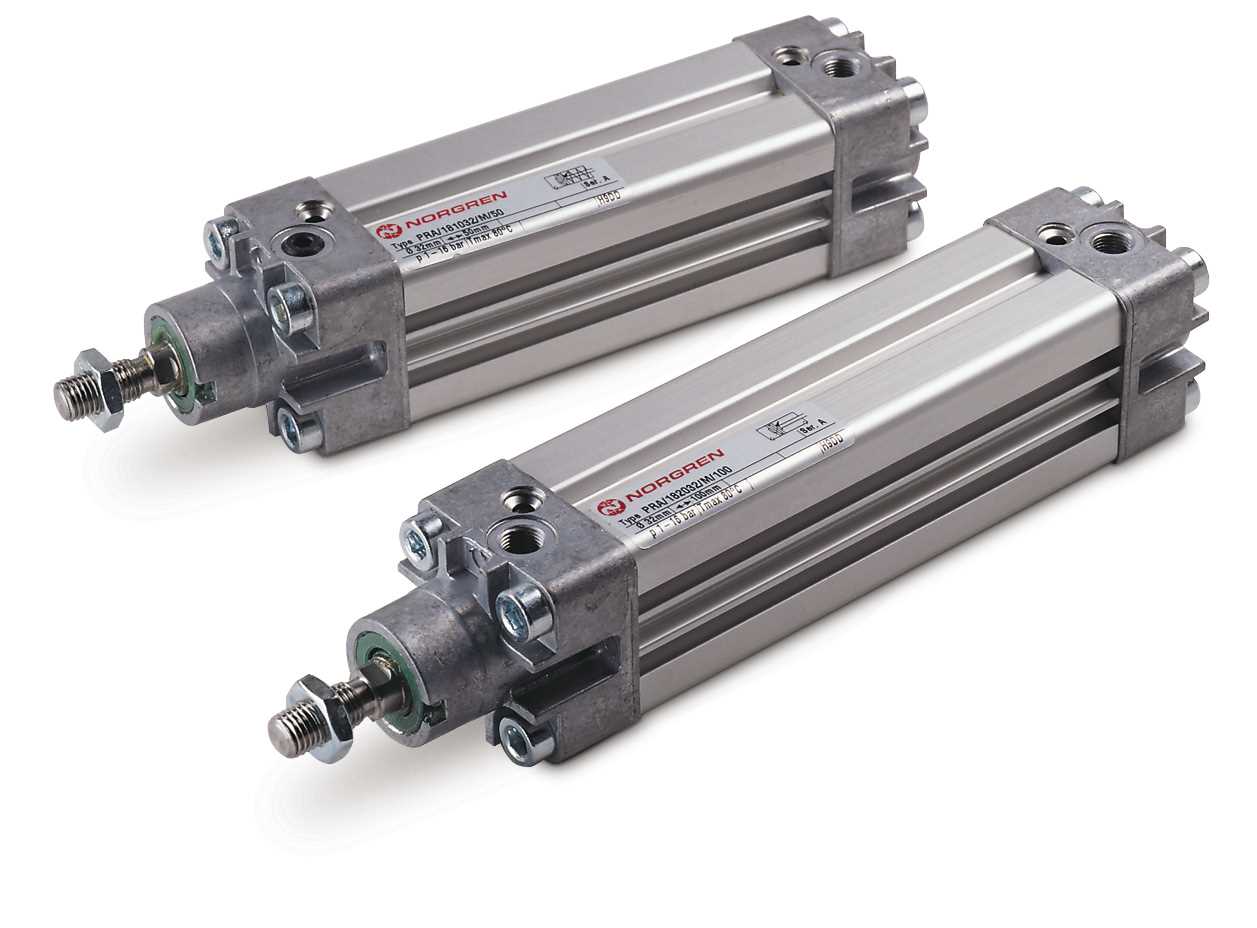

  • Pneumatic Actuators: Use compressed air to generate motion.
    • Rack & Pinion: Converts linear motion of a piston into rotary motion.
    • Scotch Yoke: Converts linear motion into rotary motion, often for larger torques.
    • Diaphragm: For linear motion, often used in control valves.

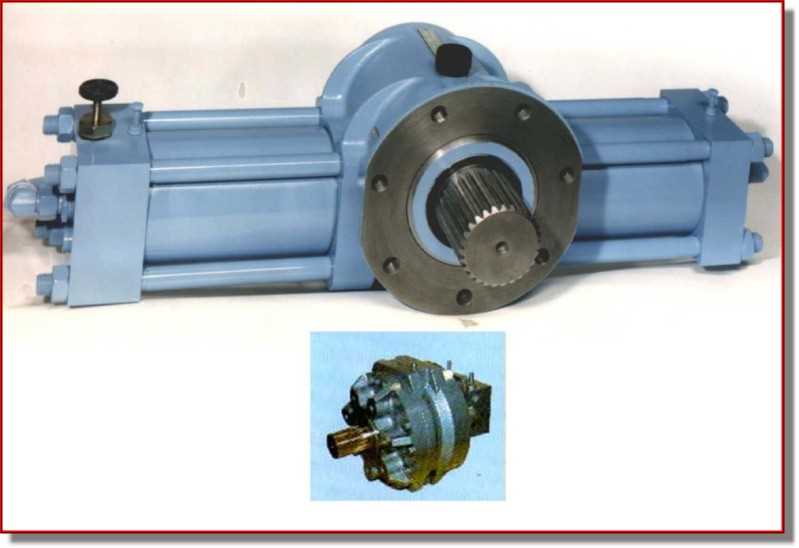

  • Hydraulic Actuators: Use pressurized hydraulic fluid to generate motion, typically for high-force applications.
    • Cylinder (Linear): For linear pushing/pulling forces.

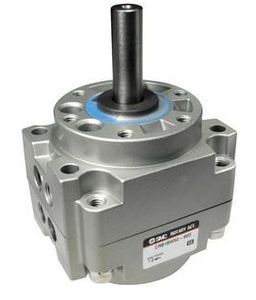

    • Rotary: For rotary motion.
  • Manual Actuators: Operated by hand (e.g., handwheels, levers), simple and reliable but require human intervention.

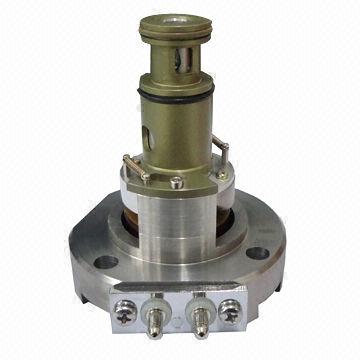

  • Solenoid Actuators: Electrically operated, fast-acting linear motion, common in small valves.
  • Smart/Intelligent Actuators: Incorporate microprocessors, communication capabilities (e.g., Foundation Fieldbus, Profibus, Modbus), and diagnostic functions.

Applications, Technology in Various Industries

  • Process Control: Widely used to operate valves (flow control, shut-off), dampers, and gates in chemical, petrochemical, oil & gas, power generation, water treatment, and food & beverage industries.
  • Robotics: Providing motion for robotic arms, grippers, and other components.
  • Automotive: Power windows, seat adjusters, engine control components.
  • Aerospace: Flight control surfaces, landing gear.
  • HVAC: Controlling airflow in ducts, opening/closing vents.
  • Manufacturing: Automation of various machinery, material handling.
  • Technology:
    • Electric: Motors (AC/DC), gearboxes, limit switches, position feedback sensors (potentiometers, encoders), control boards.
    • Pneumatic/Hydraulic: Cylinders, pistons, seals, springs (for spring-return), control valves (solenoid valves) to direct fluid flow.
    • Control Systems: Integration with PLCs, DCS (Distributed Control Systems), SCADA systems for automated operation, remote control, and monitoring.
    • Feedback: Provides real-time position feedback to the control system.

Material Selection Considerations

  • Housing/Body: Aluminum alloys (lightweight, good corrosion resistance), cast iron (robust, cost-effective), stainless steel (corrosion resistance, hygiene for specific industries), engineered plastics (for lighter duty, non-corrosive environments).
  • Gearing (Electric): High-strength steel alloys (e.g., heat-treated alloy steel, hardened carbon steel) for durability and torque transmission. Bronze or nylon for specific applications.
  • Piston/Cylinder (Pneumatic/Hydraulic): Aluminum, steel, or stainless steel for cylinders; piston materials chosen for strength and smooth operation.
  • Seals & Gaskets: Elastomers (e.g., Nitrile, Viton, EPDM) selected for compatibility with the operating fluid (air, hydraulic oil), temperature range, and pressure.
  • Shafts/Spindles: Stainless steel or hardened steel for strength and corrosion resistance.
  • Internal Components: Durable materials that can withstand wear and tear.
  • Environmental Resistance: Materials selected to withstand operating temperature, humidity, dust, and corrosive atmospheres. Explosion-proof designs may require specific material certifications.
